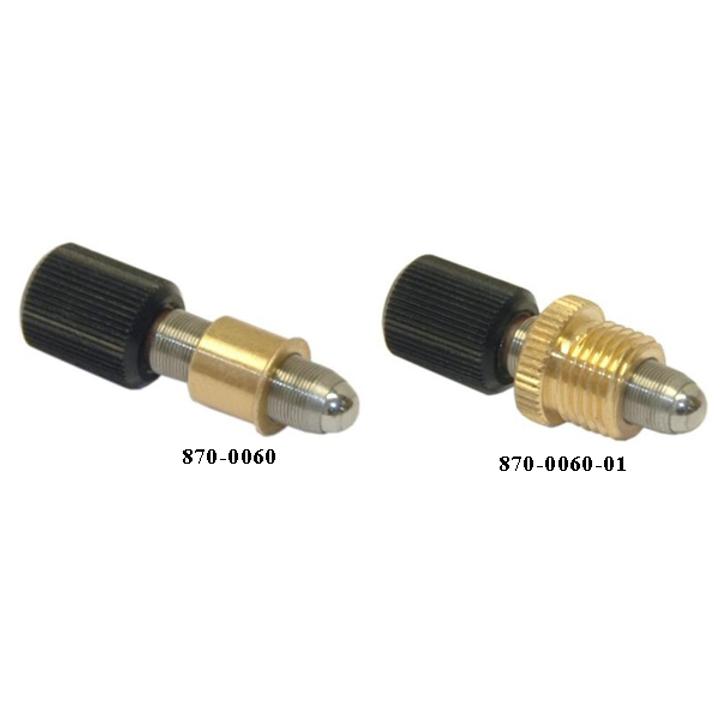

Compact Fine Screws 870-0060, 870-0060-01 SKU: 870-0060
Compact Fine Screws 870-0060 provide high resolution. Their unique design allows smooth adjustment and high repeatability. Using stainless steel screw / brass nut matching technology, backlash is in high precision M6x0.35 thread almost eliminated. The combination of metals…
Shared product specifications
These specifications apply across the Compact Fine Screws 870-0060, 870-0060-01 product family.
| Adjustment screw thread | M6x0.35 |
| Sensitivity | 1.3 μm |
| Nominal travel | 8 mm |
| Axial load capacity | 70 N |
| Compact Fine Screws - Solidworks file | |
| Compact Fine Screws - DWG file | |
| Compact Fine Screws - STEP file |
Product brochures
Shared documentation for the complete product family.
