Single Axis Tilt Stage 850-0040
Single-Axis Tilt-Stage 850-0040 provides tilt range of 6° with 6 μrad sensitivity. Pivot is done on two hardened steel balls. The base has M6 tapped holes on four sides, to fasten the platform, for example on mounting… Read more →
Listed in
Order
Specifications
| Example codes | Fine driving screw |
| 850-0040 | 870-0030 (comes as standard - omit the screw code) |
| 850-0045 | 870-0030 (comes as standard - omit the screw code) |
| 850-0040-06 | 870-0060 (alternative screw - append 06 to the code) |
| 850-0045-06 | 870-0060 (alternative screw - append 06 to the code) |
| 850-0040-08 | 870-0050 |
| 850-0045-08 | 870-0050 |
| 850-0040 Single Axis Tilt Stage - DWG file | |
| 850-0040 Single Axis Tilt Stage - STEP file |
Classification
| Type | base-positioner |
Description

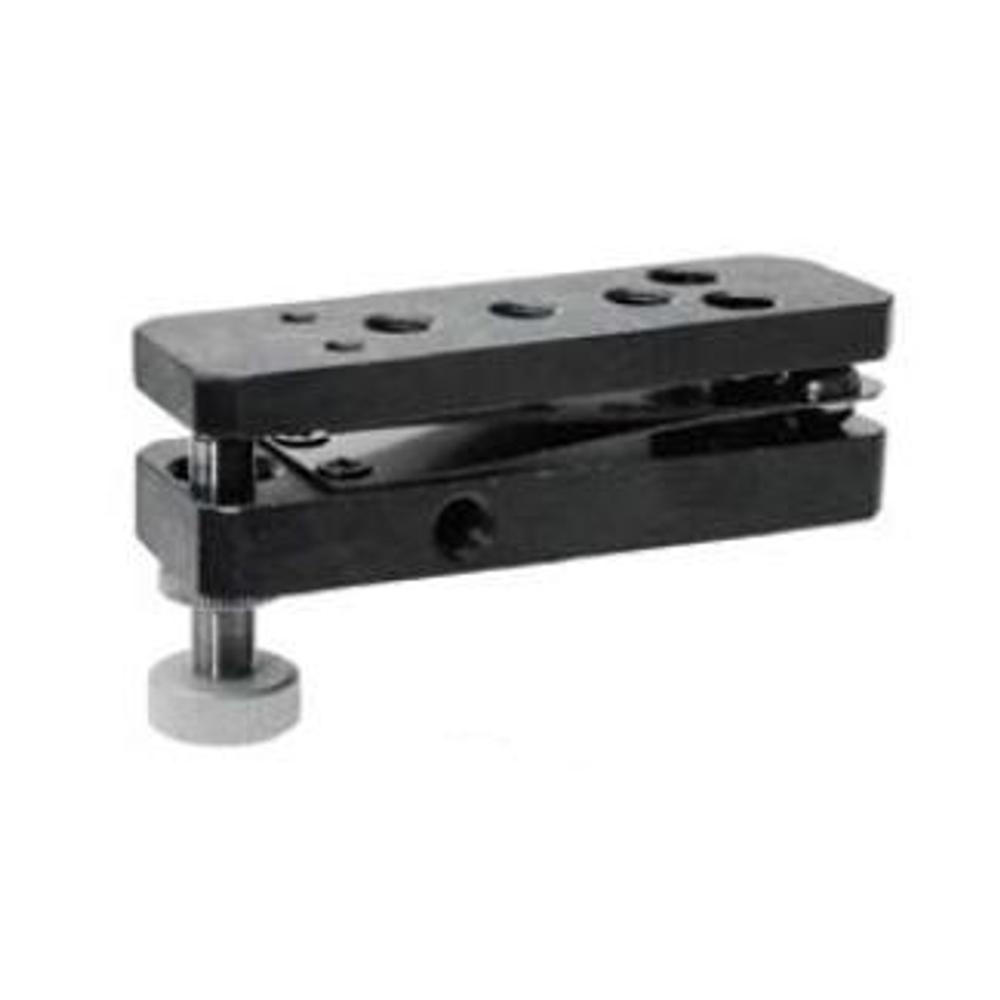

Single-Axis Tilt-Stage 850-0040 provides tilt range of 6° with 6 μrad sensitivity. Pivot is done on two hardened steel balls.
The base has M6 tapped holes on four sides, to fasten the platform, for example on mounting posts.
Material: aluminium.
Finish: black anodized.
