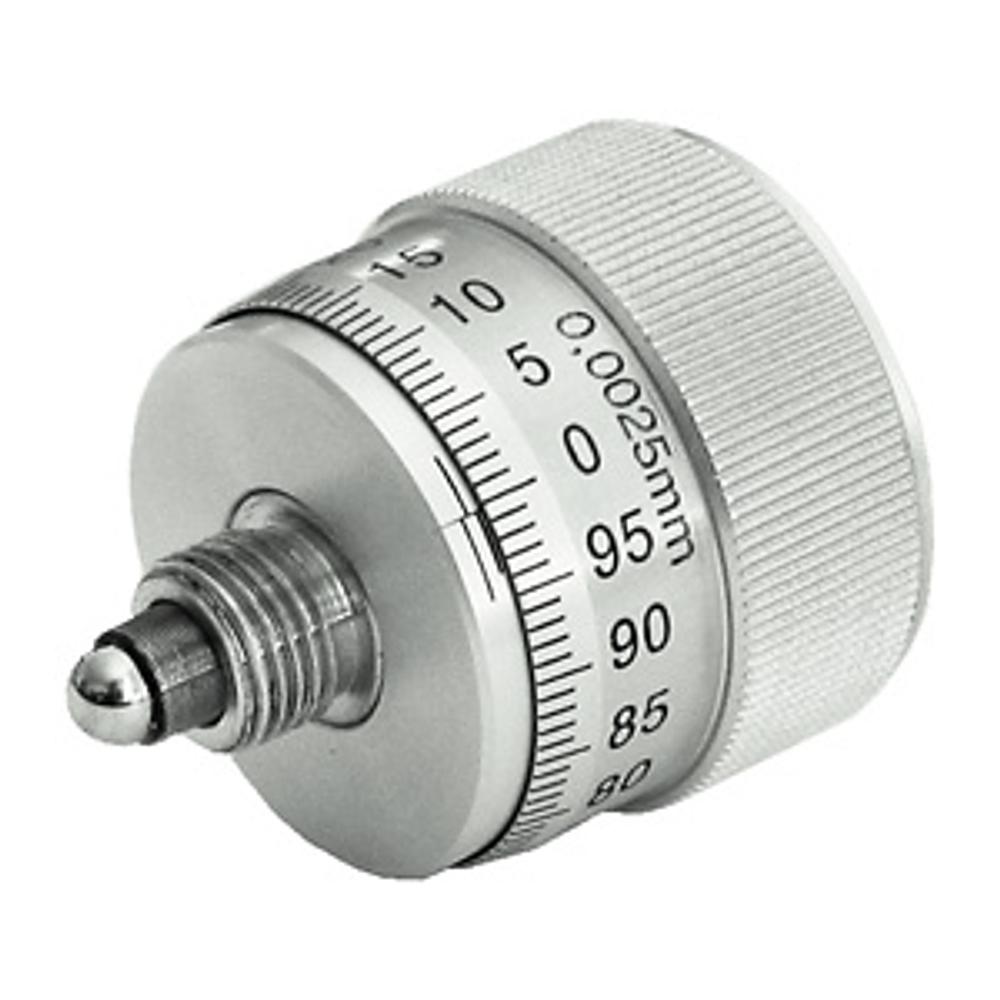

High-Resolution Micrometers 870-0050, 870-0050-02
• Stainless steel screw with hardened steel ball tip • • Brass threaded collar • Mounts on M10 holes • Scale 2.5 µm division • Nominal travel 5, 10 mm High-Resolution Micrometers 870-0050 provide increased reading… Read more →
Configure & order — pick a catalog variant or configure your own
Product
Travel Range
5 mm - 10 mm · 2 values
Any
mm
mm
Length
40 mm - 45 mm · 2 values
Any
mm
mm
2
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Travel Range | Travel Sensitivity | Length | Screw Pitch | Mounting method | |
|---|---|---|---|---|---|---|---|
| 870-0050 | Micrometer Adjustment Screws | 5 mm | 0.5 µm | 40 mm | M6×0.25 | Mounting Thread |
Out of stock
$82
|
| 870-0050-02 | Micrometer Adjustment Screws | 10 mm | 0.5 µm | 45 mm | M6×0.25 | Mounting Thread |
Out of stock
$86
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Micrometer Adjustment Screws |
| Travel Sensitivity | 0.5 µm |
| Screw Pitch | M6×0.25 |
| Axial Load Capacity | 50 N |
| Mounting method | Mounting Thread |
| Scale Division | 2.5 µm |
| Mounting Thread | M10×1 |
Description
- Stainless steel screw with hardened steel ball tip
- Brass threaded collar
- Mounts on M10 holes
- Scale 2.5 µm division
- Nominal travel 5, 10 mm
High-Resolution Micrometers 870-0050 provide increased reading accuracy by combining a large knob and a stainless steel screw with a pitch of 0.25 mm.
External mounting thread - M10x1.
External M10x0.5 mounting thread is available on request.
