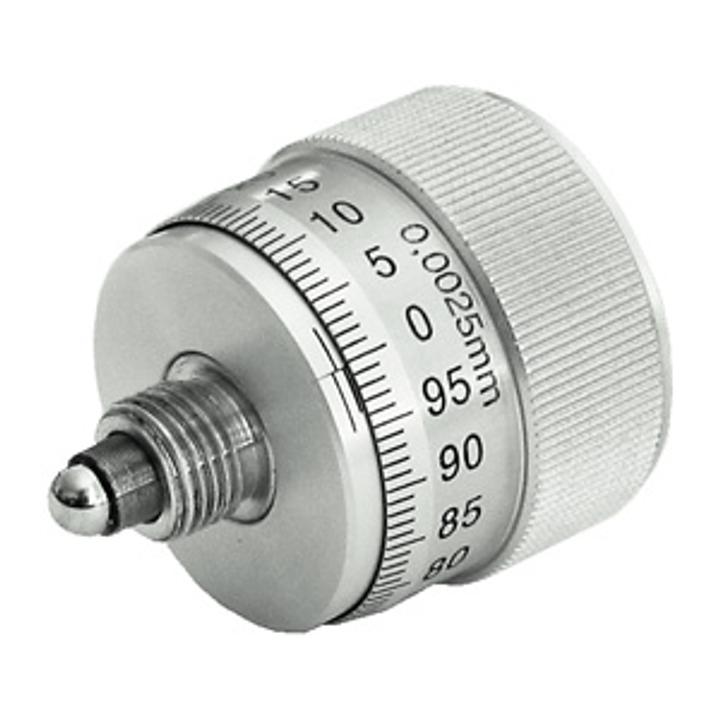

High-Resolution Micrometers 870-0050, 870-0050-02 SKU: 870-0050-02
• Stainless steel screw with hardened steel ball tip • • Brass threaded collar • Mounts on M10 holes • Scale 2.5 µm division • Nominal travel 5, 10 mm High-Resolution Micrometers 870-0050 provide increased reading accuracy by combining a large knob and a stainless steel screw…
Variant specifications
| Specification | Value |
|---|---|
| Travel | 10 mm |
| Length | 45 mm |
| I | 21 mm |
| Graduation | 2.5 µm |
Shared product specifications
These specifications apply across the High-Resolution Micrometers 870-0050, 870-0050-02 product family.
| Micrometer screw thread | M6x0.25 |
| Sensitivity | 0.5 µm |
| Scale division | 2.5 µm |
| Axial load capacity | 50 N |
| High-Resolution Micrometers - Solidworks file | |
| High-Resolution Micrometers - DWG file | |
| High-Resolution Micrometers - STEP file |
