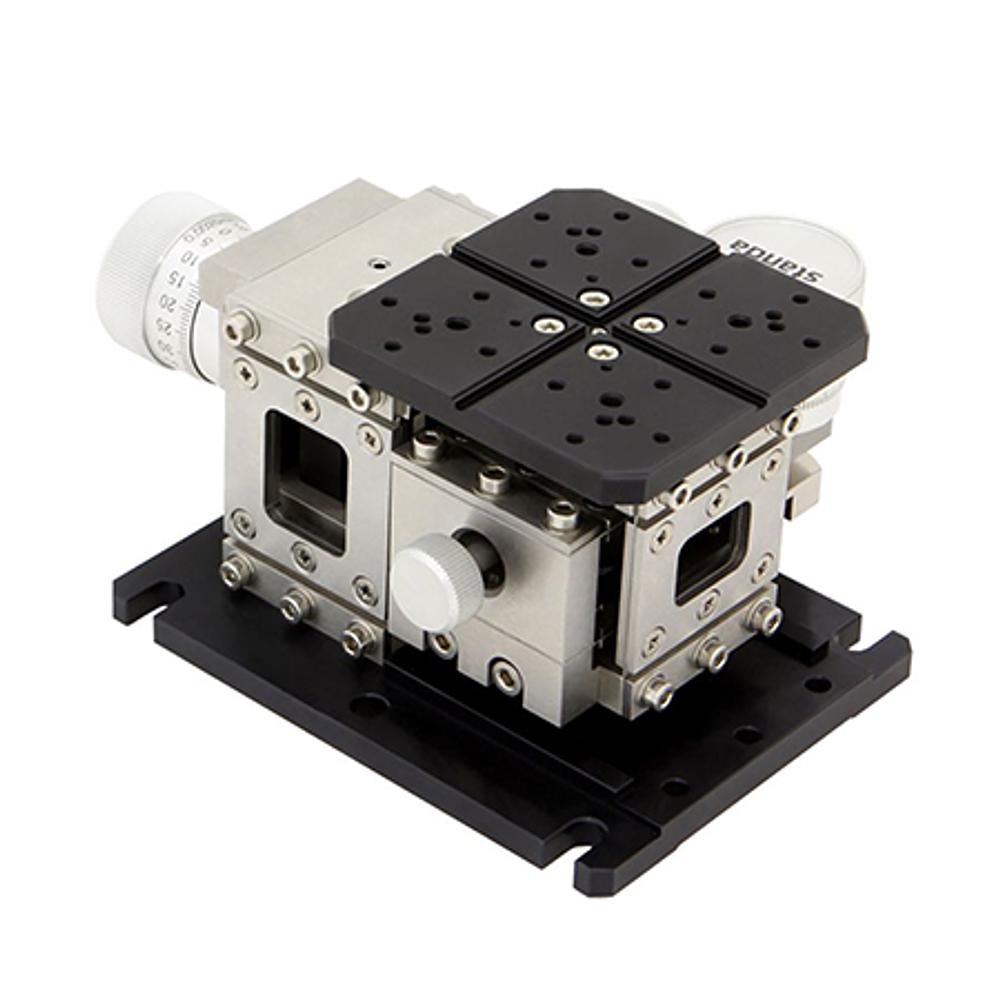

Fiber Coupling Stage 860-0210
• fiber coupling stage of flexure design • rotating platform on the top • compact block design • long-term stability • smooth motion Flexure stages are ideal for high precision device manipulation. This stage suits… Read more →
Order
| SKU | Product Type | Vacuum Compatibility | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0210 | Manual Translation Stage | False | 2 mm | XYZ | 1.5 kg |
Out of stock
$957
|
Specifications
| Product Type | Manual Translation Stage |
| Vacuum Compatibility | False |
| Travel Range | 2 mm |
| Travel Sensitivity | 0.2 µm |
| Reading Accuracy - Linear | 1.25 µm |
| Possible Axis Configurations | XYZ |
| Load Capacity Horizontal | 1.5 kg |
| Weight | 1.6 kg |
| Mounting Thread | M4, M3, M2 |
| Width | 100 mm |
| Length | 120 mm |
| Height | 115 mm |
Description
- fiber coupling stage of flexure design
- rotating platform on the top
- compact block design
- long-term stability
- smooth motion
Flexure stages are ideal for high precision device manipulation. This stage suits almost any micropositioning applications range, for example, from fiber launch systems for single-mode, multimode and polarization maintaining fibers as well as waveguide alignment, through to the manipulation of microstructures in bioscience.
Fiber Coupling Stage of flexure compact block design with high-resolution micrometers ensures long-termed stability and good stiffness together with smooth motion without the severe limitations of stiction and friction.
Flexure stages have a combination of overall size, travel, resolution, and low cost that makes them unique decision to meet the stringent requirements of photonics laboratory applications. Vacuum compatible versions are delivered on request. Also as an option fiber coupling stage can be provided with differential screws.
