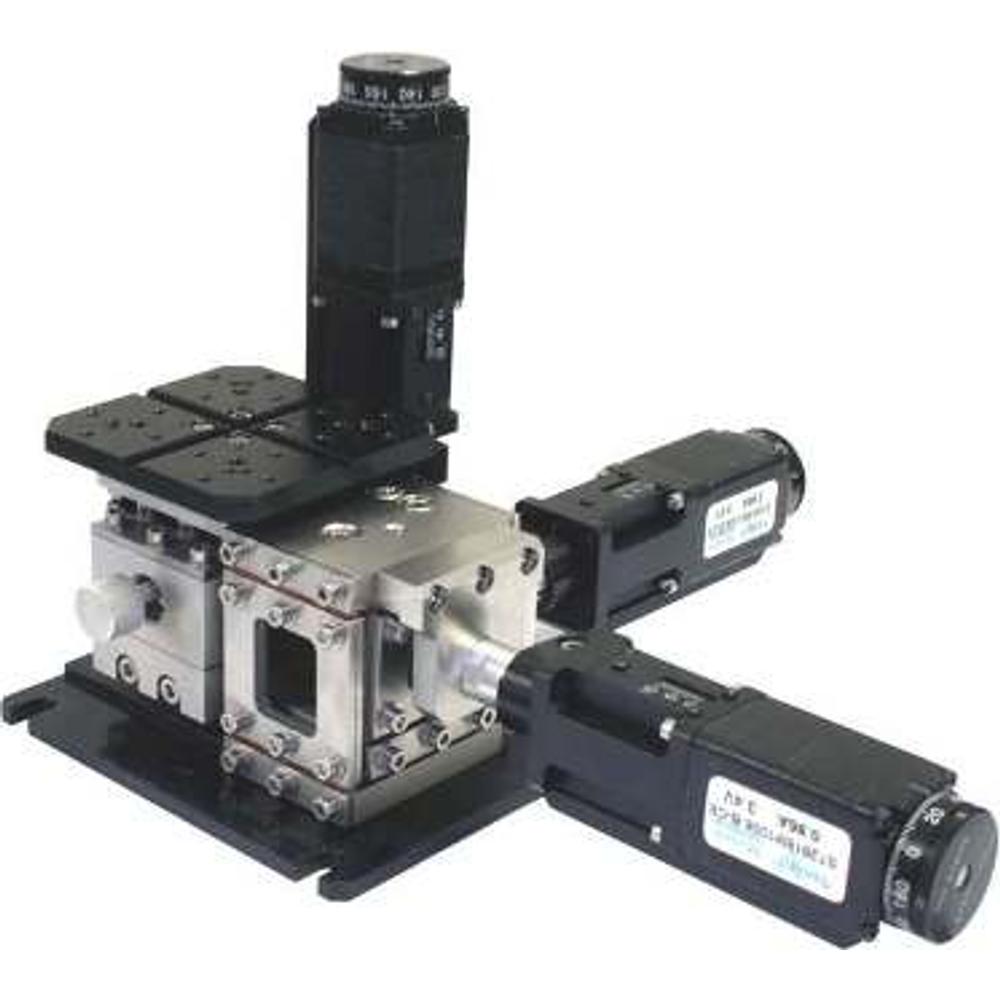

Motorized Fiber Coupling Stage 970-0070
• Fiber coupling stage of flexure design • Rotating platform on the top • Compact block design • Motorized actuator 970-0065 • Smooth motion Long-term stability Flexure stages are ideal for high precision device… Read more →
Order
| SKU | Product Type | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|
| 970-0070 | Motorized Translation Stage | 2 mm | XYZ | 1.5 kg |
Out of stock
$2,585
|
Specifications
| Product Type | Motorized Translation Stage |
| Travel Range | 2 mm |
| Possible Axis Configurations | XYZ |
| Load Capacity Horizontal | 1.5 kg |
| Weight | 1.6 kg |
| Cable Length, m | 1.2 m |
| Mounting Thread | M4, M3, M2 |
| Width | 206 mm |
| Length | 239 mm |
| Height | 157 mm |
Description
- Fiber coupling stage of flexure design
- Rotating platform on the top
- Compact block design
- Motorized actuator 970-0065
- Smooth motion
Long-term stability Flexure stages are ideal for high precision device manipulation. Motorized Fiber Coupling Stage 970-0070 suits almost any micropositioning applications range, for example, from fiber launch systems for single-mode, multimode and polarization maintaining fibers as well as waveguide alignment, through to the manipulation of microstructures in bioscience.
Motorized Fiber Coupling Stage 970-0070 of flexure compact block design with high-resolution motorized actuators ensures long-termed stability and good stiffness together with smooth motion without the severe limitations of stiction and friction. Fiber Coupling Flexure stage has a combination of overall size, travel, resolution, and low cost that makes them unique solution to meet the stringent requirements of photonics laboratory applications.
