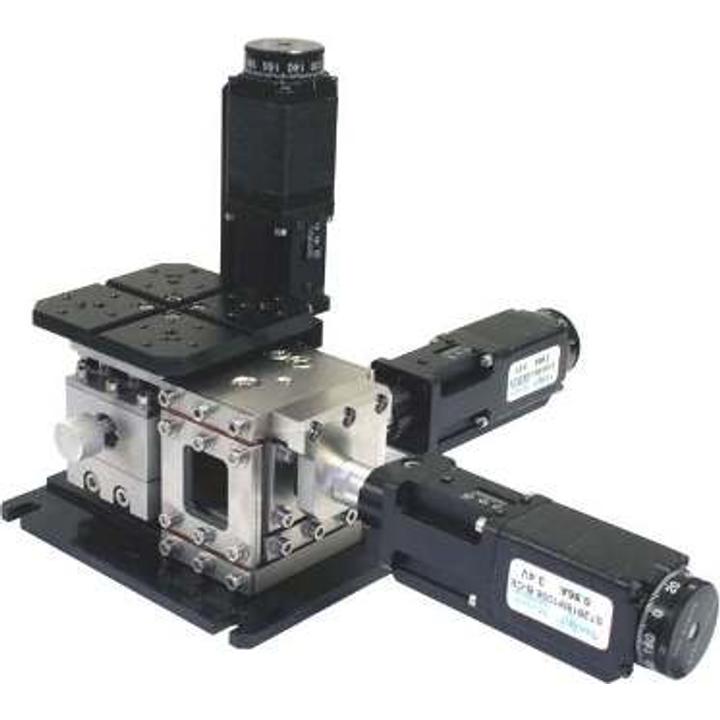

Motorized Fiber Coupling Stage 970-0070 SKU: 970-0070
• Fiber coupling stage of flexure design • Rotating platform on the top • Compact block design • Motorized actuator 970-0065 • Smooth motion Long-term stability Flexure stages are ideal for high precision device manipulation. Motorized Fiber Coupling Stage 970-0070 suits almost…
Shared product specifications
These specifications apply across the Motorized Fiber Coupling Stage 970-0070 product family.
| Travel range in each XYZ direction | 2 mm |
| Resolution | 0.2 µm |
| Cross-Talk | 20 µm / mm |
| Mechanical stability | flexure design with stainless steel spring |
| Load capacity | 1.5 kg |
| Type of actuator | 970-0065 |
| Cable | integrated, 1.2 m length |
| Motor connector | DB15(M) |
| Weight | 1.6 kg |
