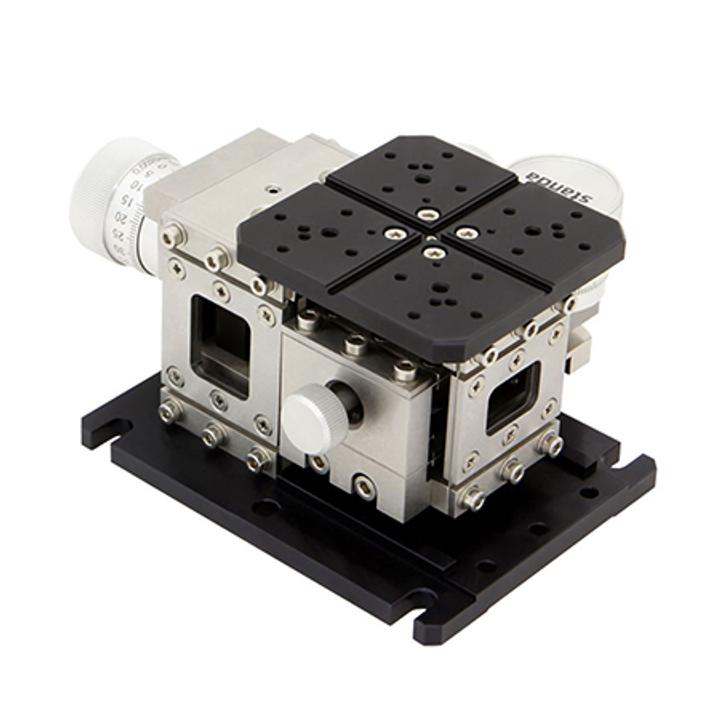

Fiber Coupling Stage 860-0210 SKU: 860-0210
• fiber coupling stage of flexure design • rotating platform on the top • compact block design • long-term stability • smooth motion Flexure stages are ideal for high precision device manipulation. This stage suits almost any micropositioning applications range, for example,…
Shared product specifications
These specifications apply across the Fiber Coupling Stage 860-0210 product family.
| Travel range in each XYZ direction | 2 mm |
| Sensitivity | 0.2 µm |
| Reading accuracy | 1.25 µm (1 / 2 division) |
| Cross-talk | 20 µm / mm |
| Mechanical stability | flexure design with Stainless Steel Spring |
| Load capacity | 1.5 kg |
Classification
| Type | translation|rotation |
| Fiber Coupling Stage - DWG file |
