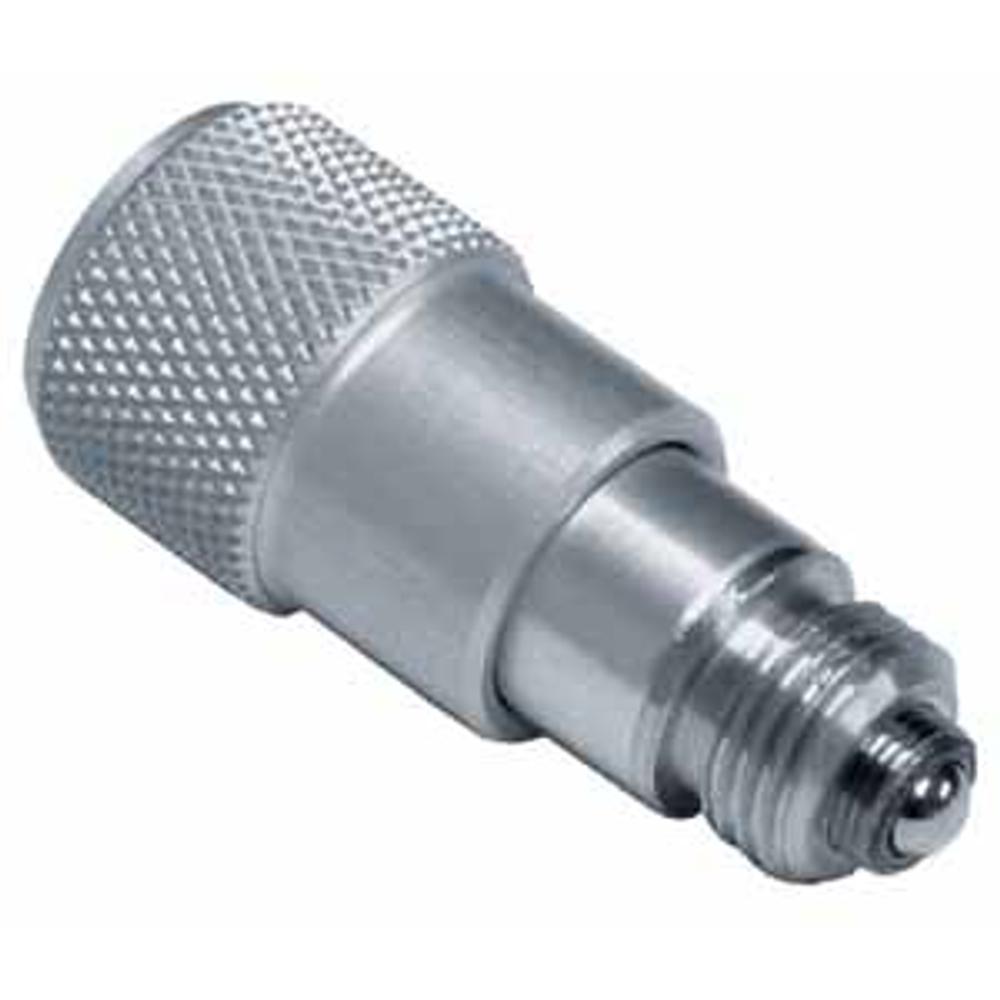

Fine Closed Screw 870-0030
Fine Closed Screw 870-0030 provides high 1 µm resolution and smooth movement. Its travel range is 10 mm. The screw is used in many of our mounts. The handle covers the thread over the complete travel range. These… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 870-0030 |
Out of stock
$59
|
Specifications
| Travel range | 10 mm |
| Length | 50 mm |
| Resolution | 1 μm |
| Screw pitch | M6x0.5 |
| Mounting Thread / (as option) | M10x1 / M10x0.5 |
| Weight | 0.02 kg |
| Fine Closed Screw - Solidworks file | |
| Fine Closed Screw - DWG file | |
| Fine Closed Screw - STEP file |
Description
Fine Closed Screw 870-0030 provides high 1 µm resolution and smooth movement. Its travel range is 10 mm. The screw is used in many of our mounts. The handle covers the thread over the complete travel range.
These special micrometer screws are designed to be used for angular adjustments in optical mounts.
External mounting thread − M10x1.
External M10x0,5 mounting thread is available on request.
