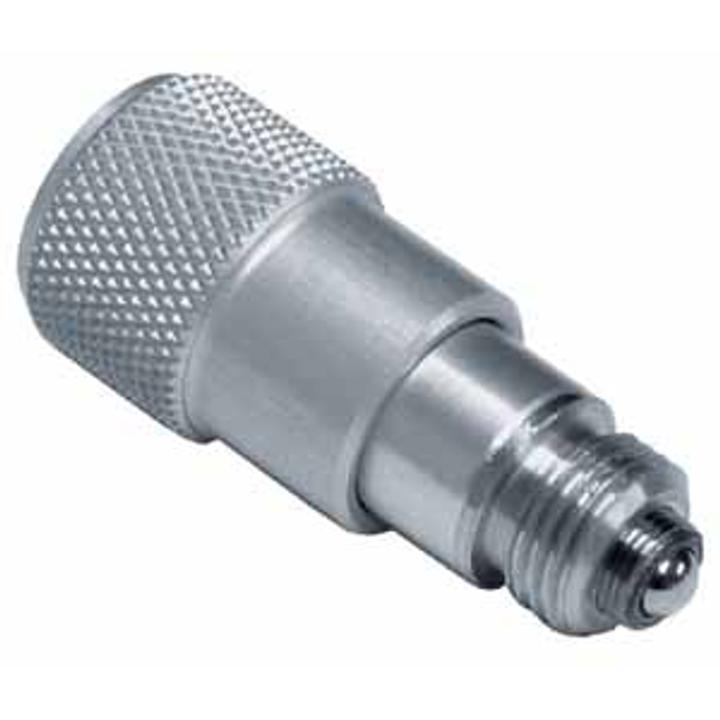

Fine Closed Screw 870-0030 SKU: 870-0030
Fine Closed Screw 870-0030 provides high 1 µm resolution and smooth movement. Its travel range is 10 mm. The screw is used in many of our mounts. The handle covers the thread over the complete travel range. These special micrometer screws are designed to be used for angular…
Shared product specifications
These specifications apply across the Fine Closed Screw 870-0030 product family.
| Travel range | 10 mm |
| Length | 50 mm |
| Resolution | 1 μm |
| Screw pitch | M6x0.5 |
| Mounting Thread / (as option) | M10x1 / M10x0.5 |
| Weight | 0.02 kg |
| Fine Closed Screw - Solidworks file | |
| Fine Closed Screw - DWG file | |
| Fine Closed Screw - STEP file |
