Y-Z Positioners for Lens, Pinholes, and Objectives 990-0100, 990-0200
Y-Z Positioners for lens, pinholes and objectives are compact mounts designed to position precisely optical components in the plane orthogonal to the optical axis. Ideal for microscope objectives, mounted pinholes,… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mount Material and Coating | Travel Range | Mount Clear Aperture | Mounted Optics Diameter | Number of Axes | |
|---|---|---|---|---|---|---|---|
| 990-0100-A1 | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | 5 mm | 24 mm | 25.5 mm - 25.5 mm | 2 |
Out of stock
$197
|
| 990-0100-B1 | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | 5 mm | 24 mm | 25.5 mm - 25.5 mm | 2 |
Out of stock
$197
|
| 990-0100-W0.8 | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | 5 mm | — | — | 2 |
Out of stock
$197
|
| 990-0200-B2 | Manual Optical Positioner, 2-screws | Black Anodised Aluminum | 5 mm | 48 mm | 51 mm - 51 mm | 2 |
Out of stock
$210
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Optical Positioner, 2-screws |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 5 mm |
| Travel Sensitivity | 2 µm |
| Mounting Thread | M6 |
| Number of Axes | 2 |
Description

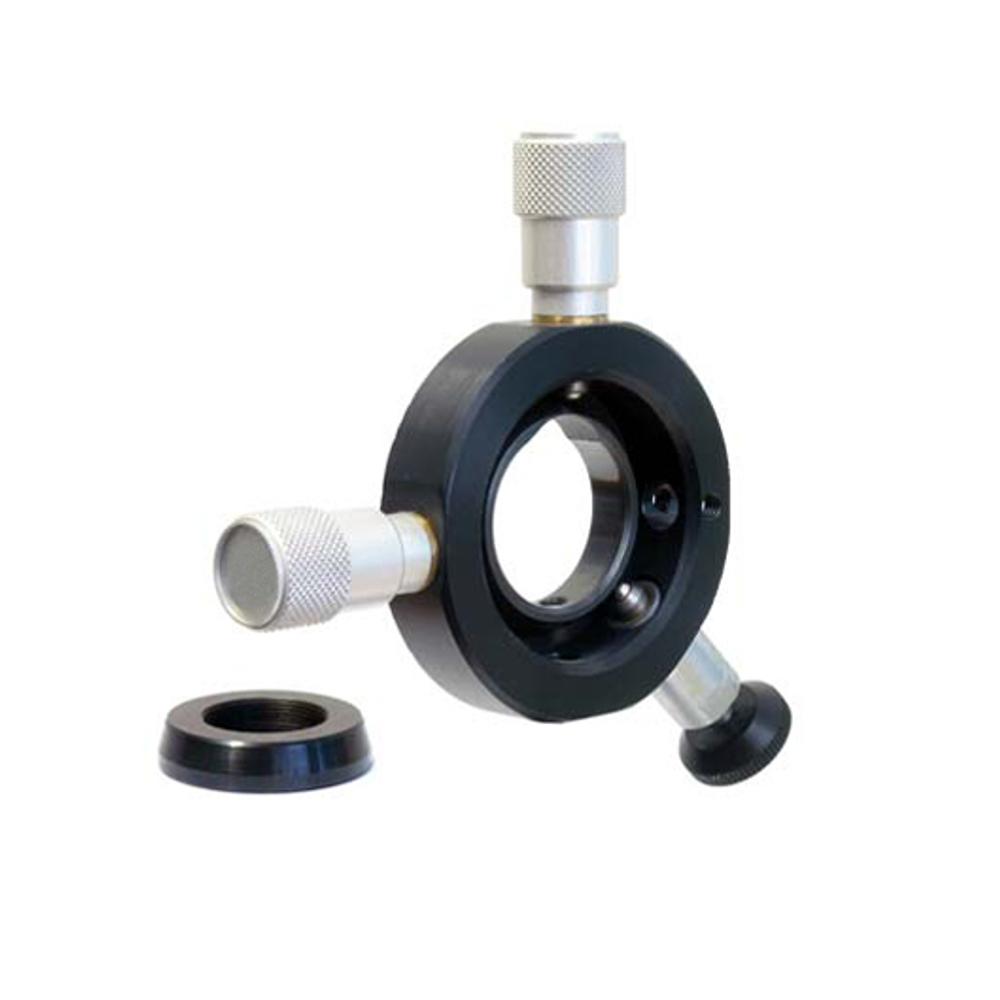

Y-Z Positioners for lens, pinholes and objectives are compact mounts designed to position precisely optical components in the plane orthogonal to the optical axis. Ideal for microscope objectives, mounted pinholes, fiber optics chucks, and diode lasers.
The mounts provide 5 mm translation with sensitivity of 2 µm.
Two adjustment screws 870-0030 are used for positioning. They can be replaced with any screw or micrometer with M10×1 mounting thread.
Two ways to fasten positioner: on mounting posts 820-0010 by a M6 hole; on a connecting cone 820-0250; 820-0254 by a Ø7 hole.
