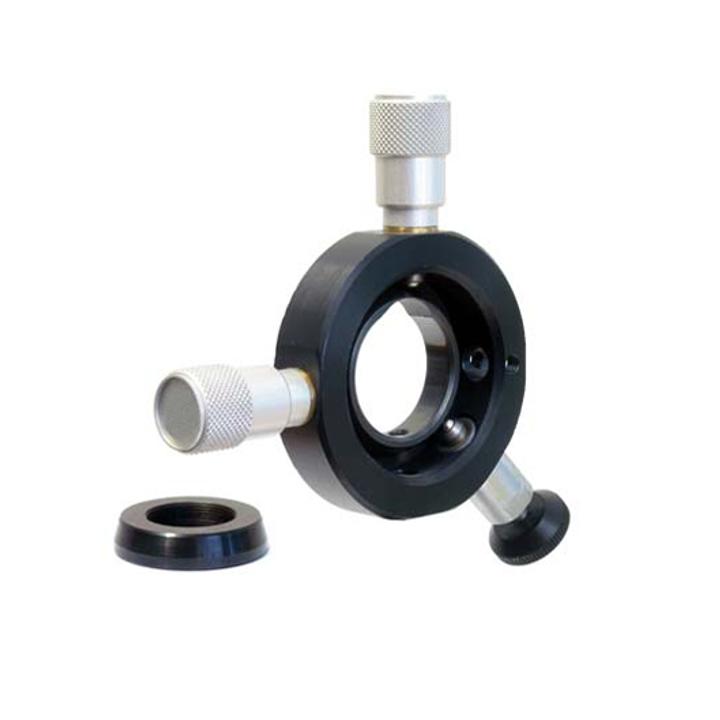

Y-Z Positioners for Lens, Pinholes, and Objectives 990-0100, 990-0200 SKU: 990-0200-B2
Y-Z Positioners for lens, pinholes and objectives are compact mounts designed to position precisely optical components in the plane orthogonal to the optical axis. Ideal for microscope objectives, mounted pinholes, fiber optics chucks, and diode lasers. The mounts provide 5 mm…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Optical Positioner, 2-screws |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 5 mm |
| Mount Clear Aperture | 48 mm |
| Travel Sensitivity | 2 µm |
| Weight | 0.38 kg |
| Mounting Thread | M6 |
| Mounted Optics Diameter | 51 mm - 51 mm |
| Width | 127 mm |
| Height | 83 mm |
| Number of Axes | 2 |
