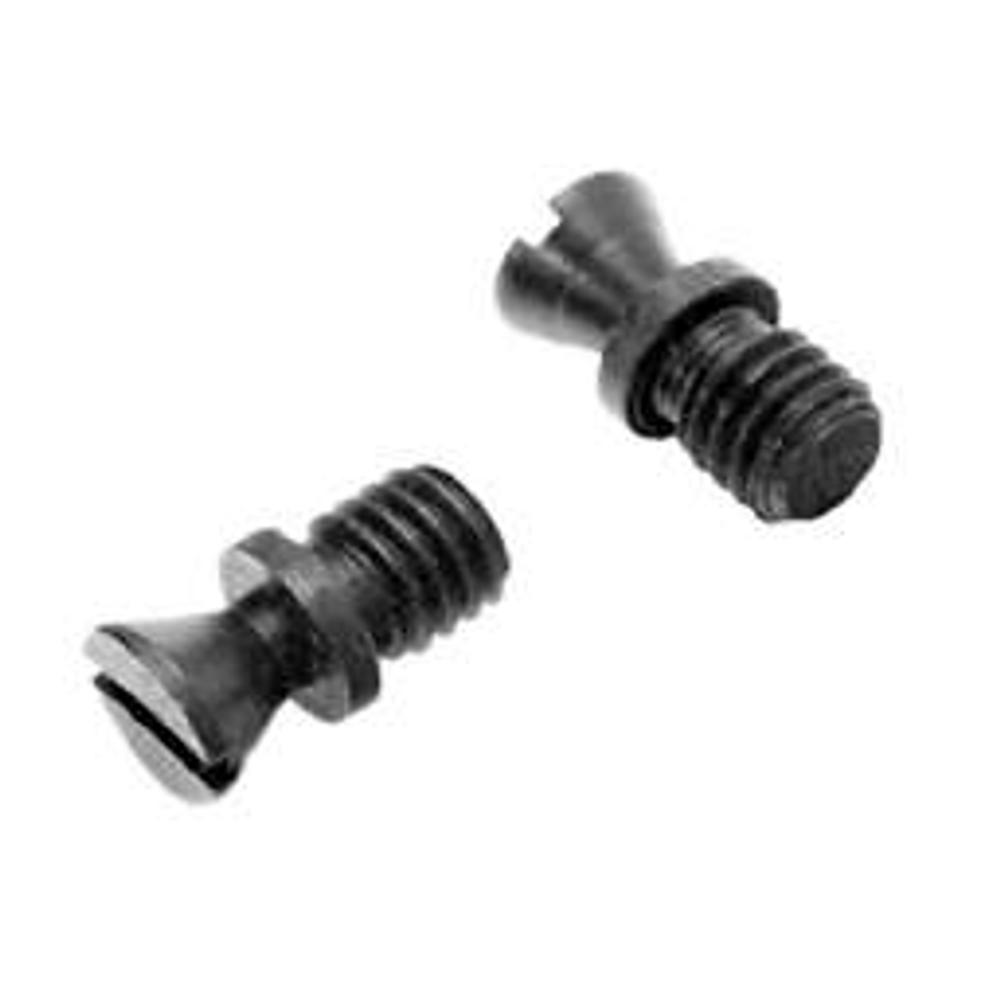

Connecting Cones 820-0250, 820-0254
Connecting Cones 820-0250 and 820-0254 are particularly useful for connecting elements when specific orientation plane is required. For example in spatial filter 990-1000, or in Narrow Translation Stages 860-0060 joined… Read more →
Order
Specifications
| Product Type | Connecting Cone |
| Length | 11 mm |
| Diameter | 7 mm |
| Mount Material and Coating | Blackened Steel |
| Weight | 0.01 kg |
Description
Connecting Cones 820-0250 and 820-0254 are particularly useful for connecting elements when specific orientation plane is required. For example in spatial filter 990-1000, or in Narrow Translation Stages 860-0060 joined for XYZ motion.
There is an M6 / M4 thread at one end and 50° cone at another. A component is fastened to the cone using an additional fastening screw.
Material: black finished steel.
