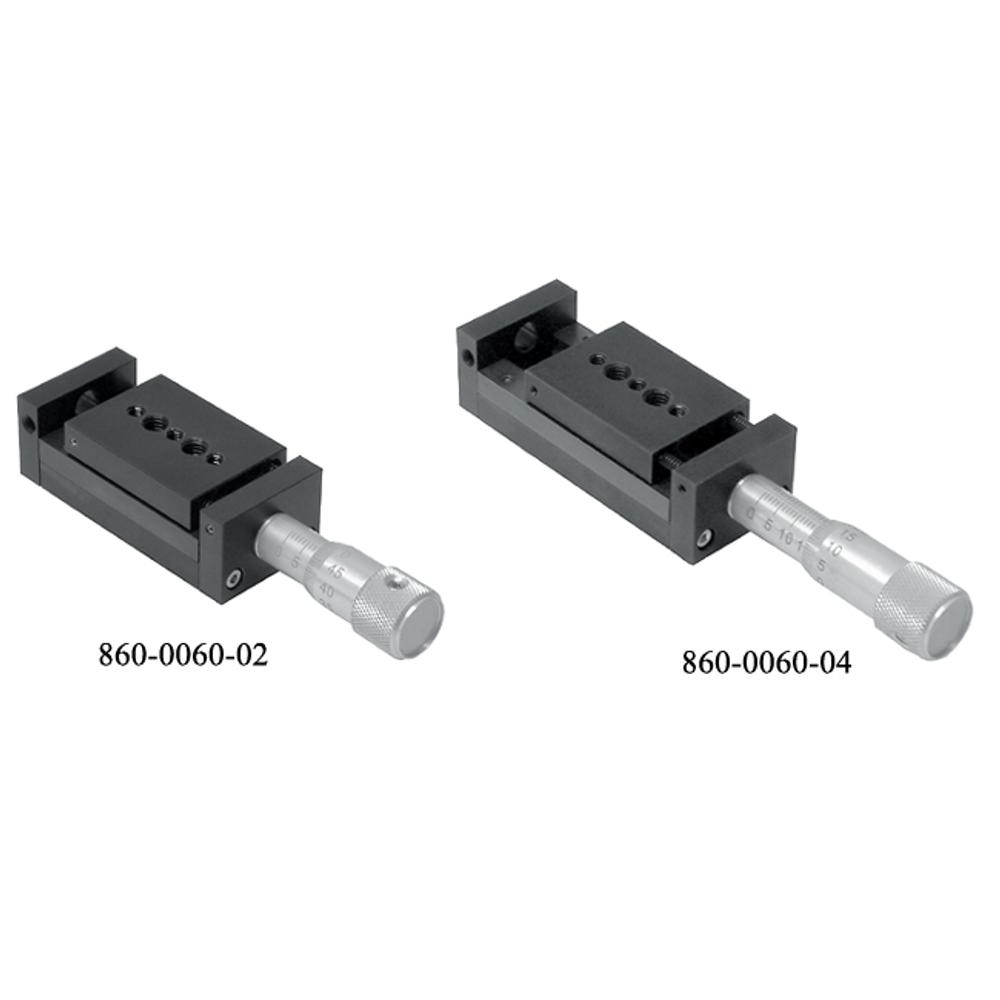

Narrow (width 30 mm) Aluminium Translation Stages 860-0060
• 10, 20, 25 mm travel ranges • Optional travel: 5, 6, 30 mm • Stackable for compact X-Y-Z configuration • Custom angle brackets are made promptly • Driving micrometer screw • Precise ball bearings • Material: black… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Travel range | |
|---|---|---|
| 860-0060-02 | 10 mm |
Out of stock
$289
|
| 860-0060-04 | 20 mm |
Out of stock
$330
|
| 860-0060-05 | 50 mm |
Out of stock
$446
|
| 860-0060-25 | 25 mm |
Out of stock
$381
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| SPECIFICATIONS | 860-0060-02 | 860-0060-04 | 860-0060-25 | 860-0060-50 |
|---|---|---|---|---|
| Travel range | 10 mm | 20 mm | 25 mm | 50 mm |
| Sensitivity | 1 µm | 1 µm | 1 µm | 1 µm |
| Tracking accuracy | 2 µm | 2 µm | 2 µm | 2 µm |
| Reading accuracy | 5 (1 / 2 division) µm | 5 (1 / 2 division) µm | 5 (1 / 2 division) µm | 5 (1 / 2 division) µm |
| Load capacity: / horizontal / vertical | 10 kg / 5 kg | 10 kg / 5 kg | 10 kg / 5 kg | 10 kg / 5 kg |
| Assemblies: X-Y Z | 810-0250 / 810-0150 | 810-0250 / 810-0150 | 810-0250 / 810-0150 | directly / 810-0150-01 |
| 860-0060 Aluminium Translation Stages - DWG file | |
| 860-0060 Aluminium Translation Stages - STEP file |
Classification
| Type | translation|rotation |
Description
- 10, 20, 25 mm travel ranges
- Optional travel: 5, 6, 30 mm
- Stackable for compact X-Y-Z configuration
- Custom angle brackets are made promptly
- Driving micrometer screw
- Precise ball bearings
- Material: black anodized aluminium
Stages 860-0060 allow manual linear motion. Standard micrometers 870-0040 are used as driving screws. Customer may specify other screws, e.g. with non-matching travel range to save space.
A platform is spring preloaded against the driving screw to provide high resolution, low backlash, smooth and accurate motion. An array of mounting holes on a platform and on a base allows a variety of convenient mounting options, including mounting on Posts.
For quick XYZ assembly stages may be stacked using connecting cones 820-0250 (Ø7.1 holes with fixing screws on the sides are provided).
For rigid XYZ assembly we offer a connecting plate 810-0250 (for Y axis) and an angle bracket 810-0150 (for Z axis).
