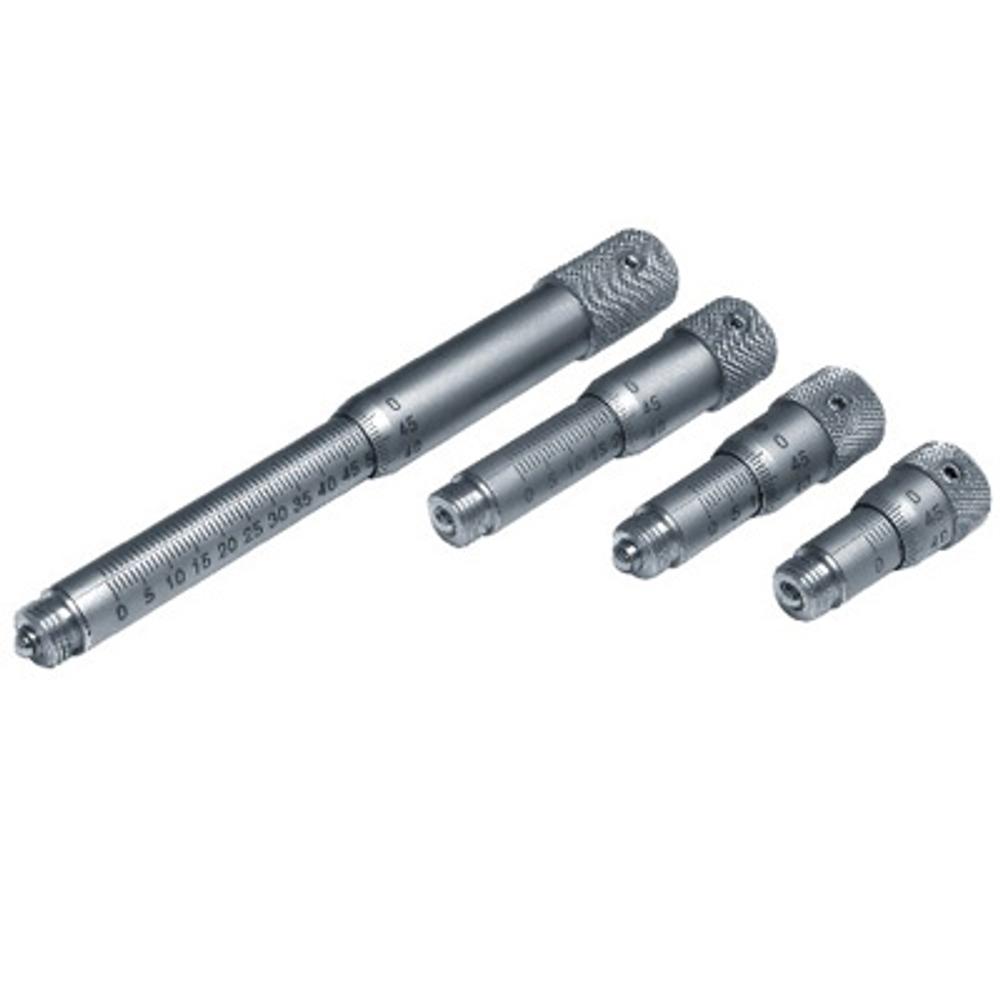

Micrometer Screws 870-0040

• Designed especially for micro-positioning applications • Stainless steel screw with hard steel ball tip, aluminium handle • Brass threaded collar • Very smooth motion allows positioning with sensitivity of 1 µm •… Read more →

From $63 Configure & order →

Configure & order — pick a catalog variant or configure your own

Product

Travel Range 5 mm - 50 mm · 7 values Any mm

Length 40 mm - 136 mm · 7 values Any mm

14 catalog variants — refine the spec to narrow it down.

SKU	Product Type	Travel Range	Travel Sensitivity	Length	Screw Pitch	Mounting method
870-0040-05	Micrometer Adjustment Screws	5 mm	1 µm	40 mm	M6×0.5	Mounting Thread	Out of stock $63
870-0040-10	Micrometer Adjustment Screws	10 mm	1 µm	54 mm	M6×0.5	Mounting Thread	Out of stock $69
870-0040-15	Micrometer Adjustment Screws	15 mm	1 µm	60 mm	M6×0.5	Mounting Thread	Out of stock $74
870-0040-20	Micrometer Adjustment Screws	20 mm	1 µm	70 mm	M6×0.5	Mounting Thread	Out of stock $80
870-0040-25	Micrometer Adjustment Screws	25 mm	1 µm	81 mm	M6×0.5	Mounting Thread	Out of stock $88
870-0040-30	Micrometer Adjustment Screws	30 mm	1 µm	92 mm	M6×0.5	Mounting Thread	Out of stock $105
870-0040-50	Micrometer Adjustment Screws	50 mm	1 µm	136 mm	M6×0.5	Mounting Thread	Out of stock $132
870-0041-05	Micrometer Adjustment Screws	5 mm	1 µm	40 mm	M6×0.5	Mounting Thread	Out of stock $87
870-0041-10	Micrometer Adjustment Screws	10 mm	1 µm	54 mm	M6×0.5	Mounting Thread	Out of stock $92
870-0041-15	Micrometer Adjustment Screws	15 mm	1 µm	60 mm	M6×0.5	Mounting Thread	Out of stock $98
870-0041-20	Micrometer Adjustment Screws	20 mm	1 µm	70 mm	M6×0.5	Mounting Thread	Out of stock $104
870-0041-25	Micrometer Adjustment Screws	25 mm	1 µm	81 mm	M6×0.5	Mounting Thread	Out of stock $112
870-0041-30	Micrometer Adjustment Screws	30 mm	1 µm	92 mm	M6×0.5	Mounting Thread	Out of stock $131
870-0041-50	Micrometer Adjustment Screws	50 mm	1 µm	136 mm	M6×0.5	Mounting Thread	Out of stock $156

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type	Micrometer Adjustment Screws
Travel Sensitivity	1 µm
Screw Pitch	M6×0.5
Mounting method	Mounting Thread
Scale Division	10 µm
Mounting Thread	M10×1

Description

Designed especially for micro-positioning applications
Stainless steel screw with hard steel ball tip, aluminium handle
Brass threaded collar
Very smooth motion allows positioning with sensitivity of 1 µm
Scale gradation 10 µm
Nominal travel 5, 10, 15, 20, 25, 30, 50 mm

Micrometer Screws 870-0040 are used in Eksma Optics translation stages and mirror mounts and can be used in mounts and stages of other manufacturers.

Vernier scale is engraved on the revolving cylindrical collar of the micrometer screw. The collar can be rotated to make the scale visible if micrometer screw is mounted with the scale out of sight.

Screws have M6x0.5 internal driving screw thread, external mounting thread is M10x1. External M10x0.5 mounting thread is available on request.
