Stable Aluminium Translation Stage 860-0053
• Solid box design • 25 mm travel range • Variety of mounting holes and options • Easily stacked in X-Y configuration • Large mounting surface Stable Aluminium Translation Stage has a large mounting surface, great… Read more →
Order
| SKU | Product Type | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0053-01 | Manual Translation Stage | Black Anodised Aluminum | 25 mm | X | 20 kg |
Out of stock
$358
|
| 860-0053-02 | Manual Translation Stage | Black Anodised Aluminum | 25 mm | X | 20 kg |
Out of stock
$377
|
| 860-0053-03 | Manual Translation Stage | Black Anodised Aluminum | 25 mm | X | 20 kg |
Out of stock
$358
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 25 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 10 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 20 kg |
| Load Capacity Vertical | 5 kg |
| Weight | 0.4 kg |
| Mounting Thread | M6, M4 |
| Length | 72.5 mm |
| Height | 19 mm |
Description
- Solid box design
- 25 mm travel range
- Variety of mounting holes and options
- Easily stacked in X-Y configuration
- Large mounting surface

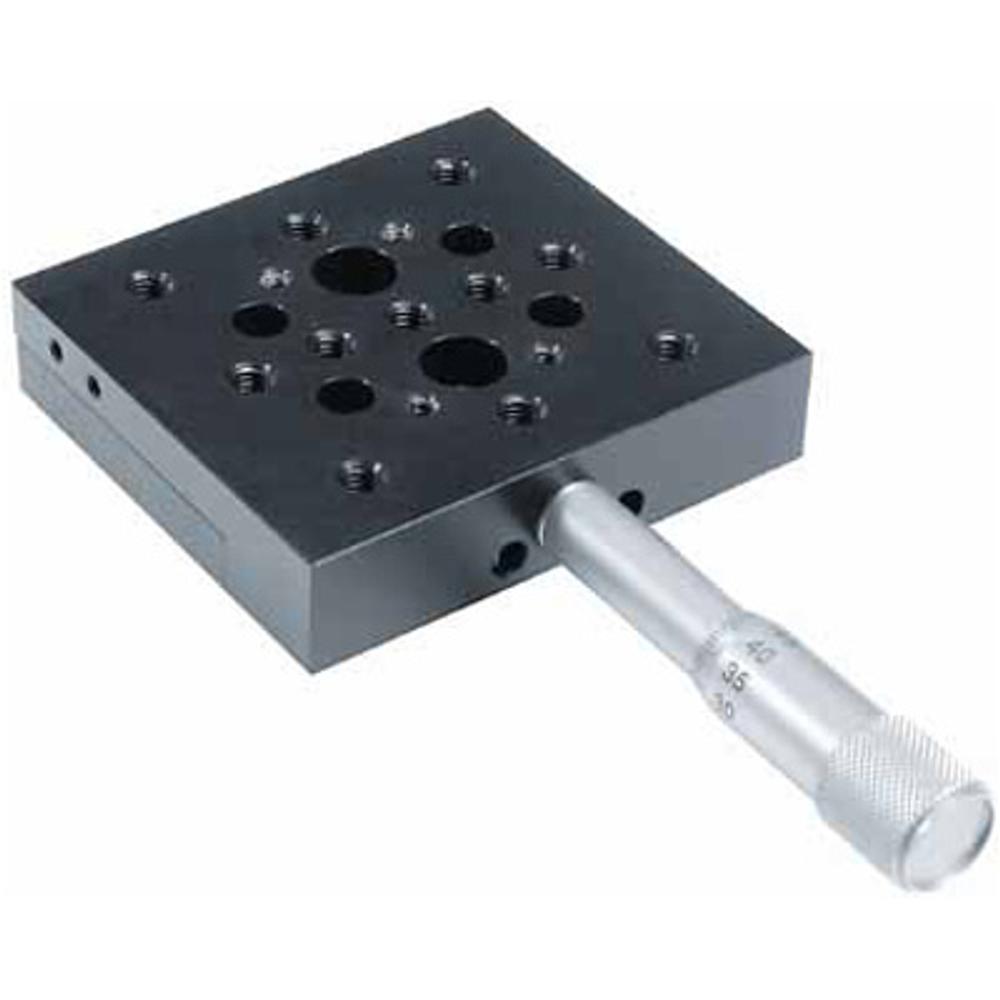

Stable Aluminium Translation Stage has a large mounting surface, great travel range for this relatively small size, low profile and increased stability of precision. Box designed reinforces the stage, redusing flex. The platform is preloaded by springs. The stage could be stacked immediately to other units or to their own type (e.g. in X-Y configuration). Z axis is attached through angle bracket 810-0146A.
The stage could be used upside-down. For immediate attachment the base has 2 clearance holes for M6 screws. Similary, the platform has 4 clearance holes for M4 screws. Slip the screws from top or under through the across holes in a platform/base. Micrometers 870-0040-25 come as a standard.
Material: black anodized aluminium.
