Medium (width 50 mm) Aluminium Translation Stages 860-0060
• 50, 100, 150 mm travel ranges • Stackable for X-Y-Z configuration • Convenient patterns of mounting holes • Precise ball bearings • Custom angle brackets are made promptly • Material: black anodized… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Vacuum Compatibility | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|---|
| 860-0060-06 | Manual Translation Stage | — | Black Anodised Aluminum | 50 mm | X | 40 kg |
Out of stock
$576
|
| 860-0060-08 | Manual Translation Stage | False | Black Anodised Aluminum | 100 mm | X | 40 kg |
Out of stock
$712
|
| 860-0060-10 | Manual Translation Stage | False | Black Anodised Aluminum | 150 mm | X | 40 kg |
Out of stock
$797
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 10 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 40 kg |
| Mounting Thread | M6, M4, M3 |
Description
- 50, 100, 150 mm travel ranges
- Stackable for X-Y-Z configuration
- Convenient patterns of mounting holes
- Precise ball bearings
- Custom angle brackets are made promptly
- Material: black anodized aluminium

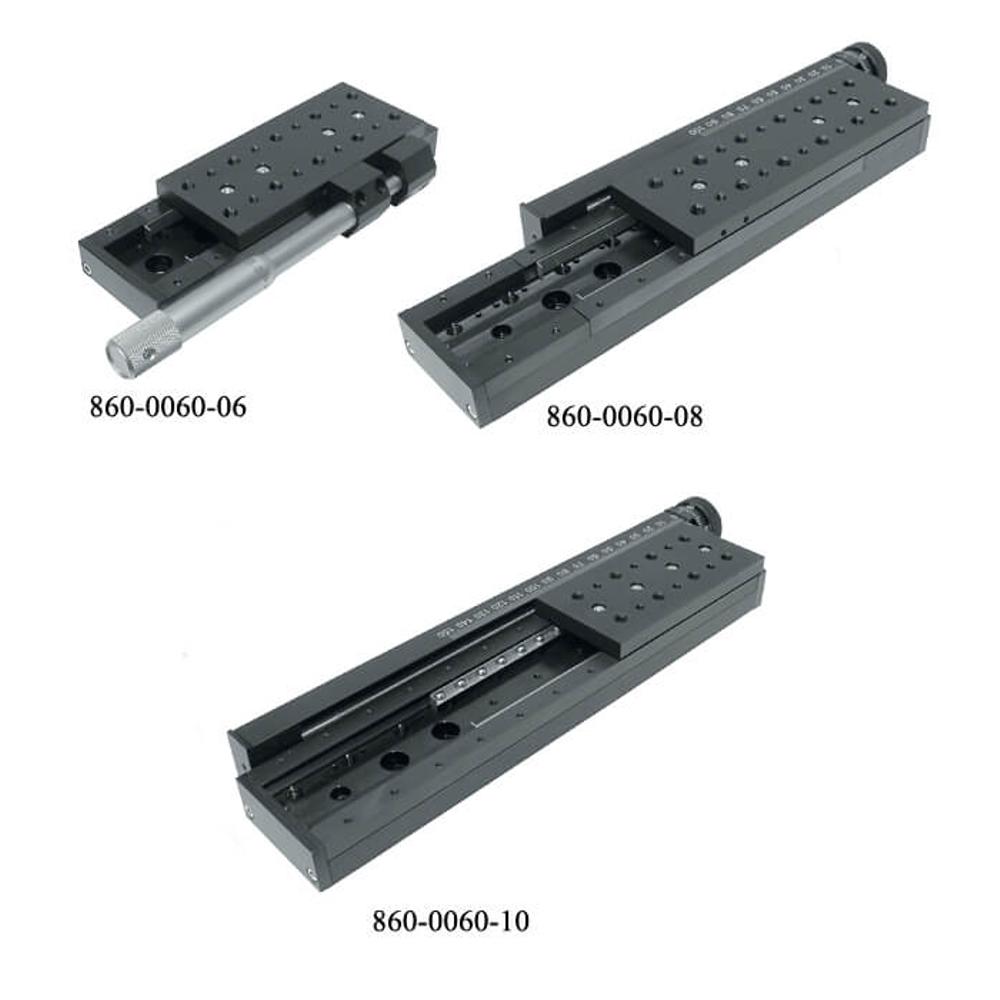

860-0060-08 uses 870-0040 micrometer as a driving screw. The platform is preloaded against the screw.
860-0060-08 and 860-0060-10 use their own integrated driving screws. The screw has a micrometric scale (on the body and knob). The pitch of the screw is 0.5 mm. Custom pitch and gears are available on request.
The platform of 860-0060-08 (-10) is preloaded by a collar of our original design on the screw, rendering an increased load capacity, stability, and reduced backlash.
