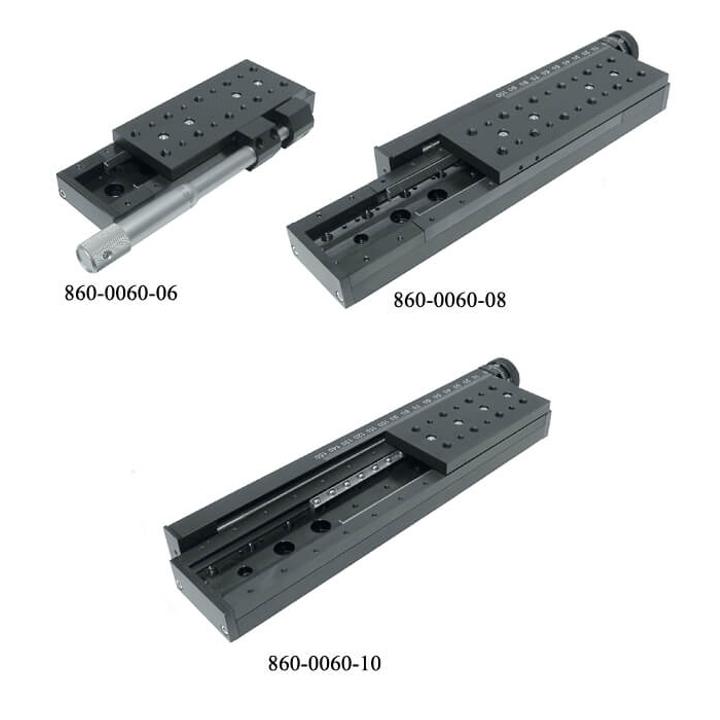

Medium (width 50 mm) Aluminium Translation Stages 860-0060 SKU: 860-0060-10
• 50, 100, 150 mm travel ranges • Stackable for X-Y-Z configuration • Convenient patterns of mounting holes • Precise ball bearings • Custom angle brackets are made promptly • Material: black anodized aluminium 860-0060-08 uses 870-0040 micrometer as a driving screw. The…
Variant specifications
| Specification | Value |
|---|---|
| Travel range | 150 mm |
Shared product specifications
These specifications apply across the Medium (width 50 mm) Aluminium Translation Stages 860-0060 product family.
| Specifications | 860-0060-06 | 860-0060-08 | 860-0060-10 |
|---|---|---|---|
| Travel range | 50 mm | 100 mm | 150 mm |
| Sensitivity | |||
| Tracking accuracy | |||
| Reading accuracy | 10 µm | 10 µm | 10 µm |
| Load capacity: / horizontal / vertical | 40 kg / 9 kg | 40 kg / 20kg | 40 kg / 20 kg |
| Assemblies: / XY / Z | directly / Angle bracket 810-0160 | directly / Angle bracket 810-0160 | directly / Angle bracket 810-0160 |
Classification
| Type | translation|rotation |
