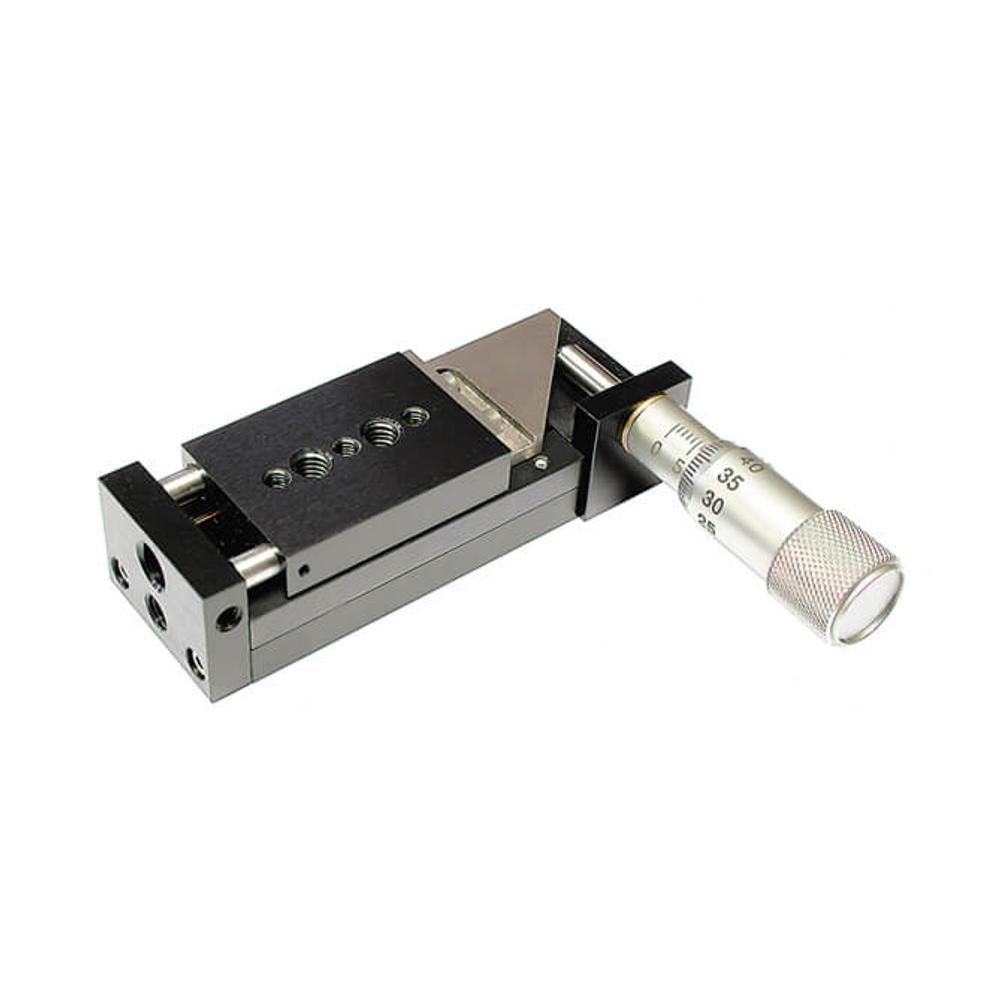

Side Control Linear Stages 860-0058
• 10, 20 mm travel ranges • Side Control Linear Stage • Driving Micrometer screw • Precise ball bearings • Compact XYZ configuration with all screws from one side • Right and left hand versions Side control linear… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|
| 860-0058-10 | Manual Translation Stage | 10 mm | X | 10 kg |
Out of stock
$383
|
| 860-0058-11 | Manual Translation Stage | 10 mm | X | 10 kg |
Out of stock
$393
|
| 860-0058-20 | Manual Translation Stage | 20 mm | X | 10 kg |
Out of stock
$431
|
| 860-0058-21 | Manual Translation Stage | 20 mm | X | 10 kg |
Out of stock
$431
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Translation Stage |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 5 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 10 kg |
| Load Capacity Vertical | 5 kg |
| Mounting Thread | M6, M4 |
| Height | 22 mm |
Description
- 10, 20 mm travel ranges
- Side Control Linear Stage
- Driving Micrometer screw
- Precise ball bearings
- Compact XYZ configuration with all screws from one side
- Right and left hand versions
Side control linear translation stages 860-0058 are equipped with 870-0040 series micrometer screws and provide convenient control in limited space setups. Both left-hand (860-0058-10, 860-0058-20) and right-hand (860-0058-11; 860-0058-21) versions are available. These stages can be used in multi-axis combinations and are compatible with 860-0060 series stages. In dense optical schemes with limited access to multi-axis stages you have a possibility to control all three axes from one side.
