Side Control Linear Stages 860-0058 SKU: 860-0058-20

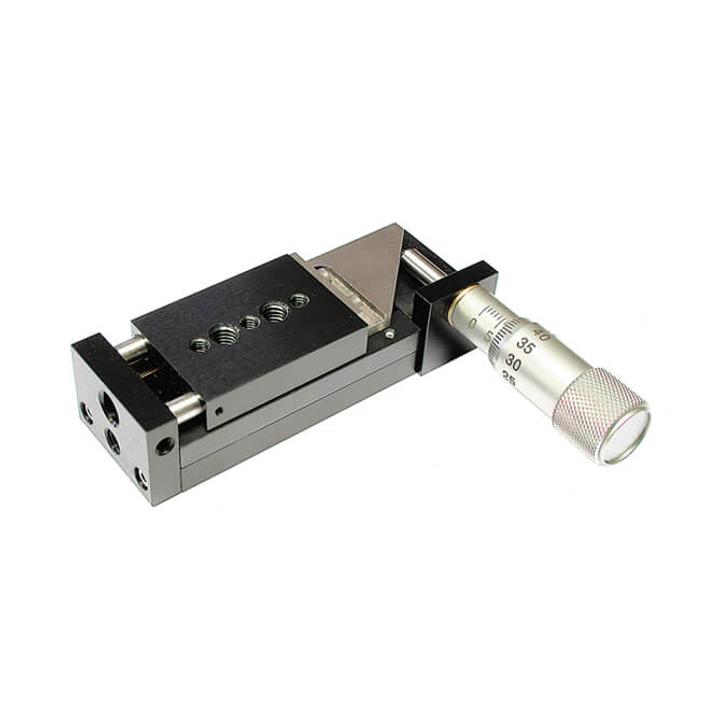

• 10, 20 mm travel ranges • Side Control Linear Stage • Driving Micrometer screw • Precise ball bearings • Compact XYZ configuration with all screws from one side • Right and left hand versions Side control linear translation stages 860-0058 are equipped with 870-0040 series…
Variant specifications
| Specification | Value |
|---|---|
| A, mm | 34 |
| B, mm | 51 |
| L, mm | 86 |
| T, mm | 74-94 |
| Description | left hand version |
Shared product specifications
These specifications apply across the Side Control Linear Stages 860-0058 product family.
| Model | 860-0058-10 | 860-0058-20 |
|---|---|---|
| Travel range, mm | 10 | 20 |
| Sensitivity, μm | 1 | 1 |
| Tracking accuracy, μm | 2 | 2 |
| Reading accuracy, μm | 5 (1 / 2 division) | 5 (1 / 2 division) |
| Load capacity: / horizontal, kg / vertical, kg | 10 / 5 | 10 / 5 |
| Weight, kg | 0.18 | 0.23 |
| Assemblies: / X-Y / Z | Base Plate 810-0250 / Angle Bracket 810-0150 | Base Plate 810-0250 / Angle Bracket 810-0150 |
Classification
| Type | translation|rotation |
