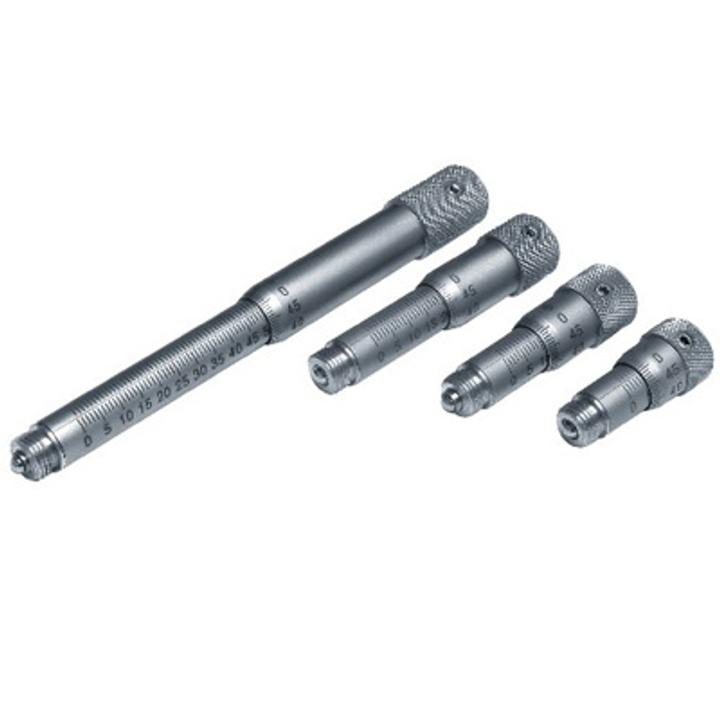

Micrometer Screws 870-0040 SKU: 870-0041-30
• Designed especially for micro-positioning applications • Stainless steel screw with hard steel ball tip, aluminium handle • Brass threaded collar • Very smooth motion allows positioning with sensitivity of 1 µm • Scale gradation 10 µm • Nominal travel 5, 10, 15, 20, 25, 30, 50…
Variant specifications
| Specification | Value |
|---|---|
| Nominal travel | 30 mm |
| Maximum travel | 32 mm |
| Length | 92 mm |
Shared product specifications
These specifications apply across the Micrometer Screws 870-0040 product family.
| Scale gradation | 0.01 mm Sensitivity | 1 µm |
|---|---|---|
| Pitch | M6x0.5 | |
| Thread / (as option) | M10x1 / M10x0.5 |
