Mini Angle Brackets 810-0130
Mini Angle Brackets 810-0130 are used to increase the functionality of Mini and Micro series Optical positioners. Model 810-0130-02 enables to establish a postioner at any angle. 810-0130-04 also provides height… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Width | Length | Height | Thickness | Mount Material and Coating | |
|---|---|---|---|---|---|---|---|
| 810-0130-02 | Angle Bracket | 9 mm | 35 mm | 31 mm | 6 mm | Black Anodised Aluminum |
Out of stock
$10
|
| 810-0130-04 | Angle Bracket | 10 mm | 35 mm | 70 mm | 6 mm | Black Anodised Aluminum |
Out of stock
$14
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Angle Bracket |
| Length | 35 mm |
| Thickness | 6 mm |
| Mount Material and Coating | Black Anodised Aluminum |
| Weight | 0.01 kg |
| Mounting Thread | M4 |
Description

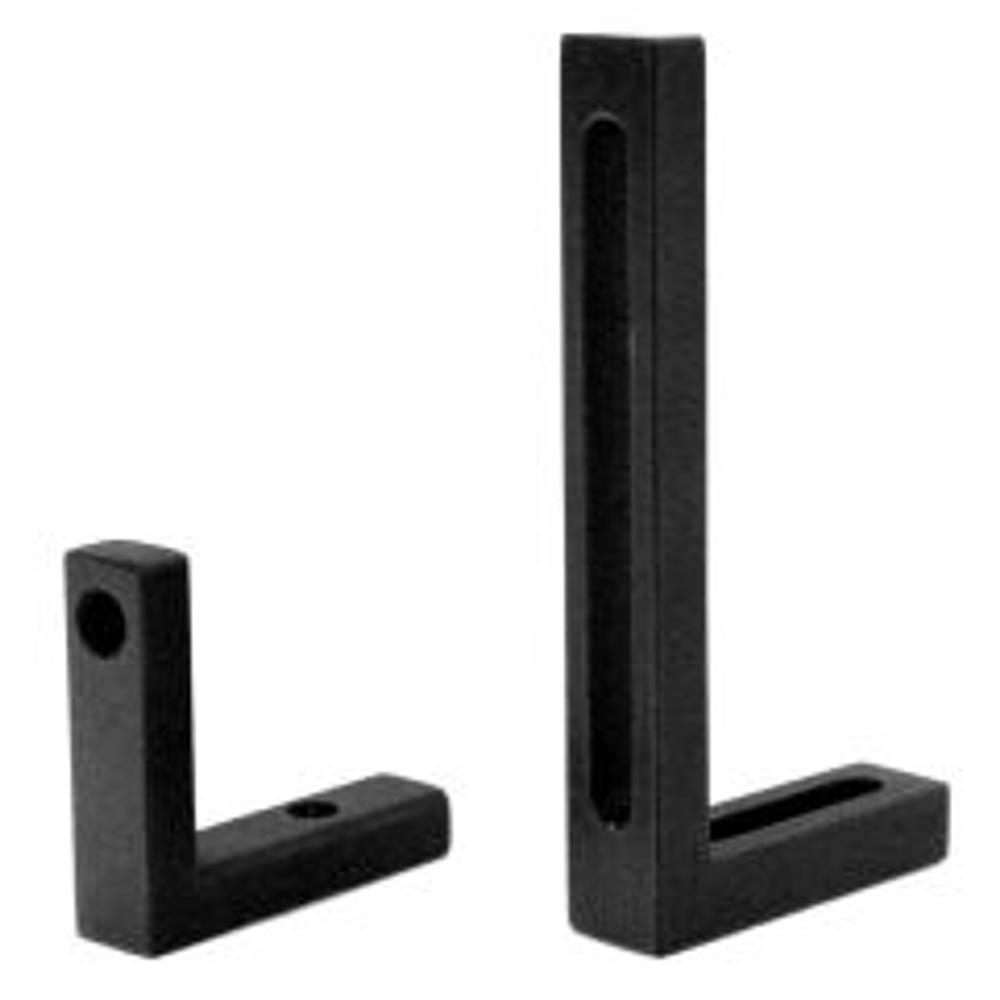

Mini Angle Brackets 810-0130 are used to increase the functionality of Mini and Micro series Optical positioners.

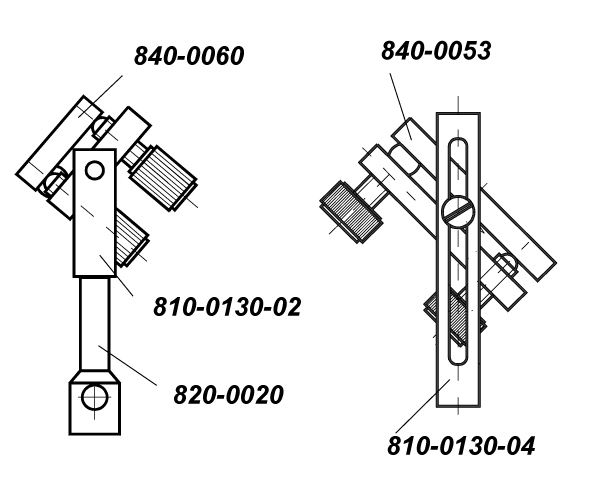

Model 810-0130-02 enables to establish a postioner at any angle. 810-0130-04 also provides height orientation, as it has two 4.2 mm clearance slots. For coarse adjustments about horizontal axis compact Mirror mounts can be used with Mini Angle Brackets.
Material: black anodized aluminium.

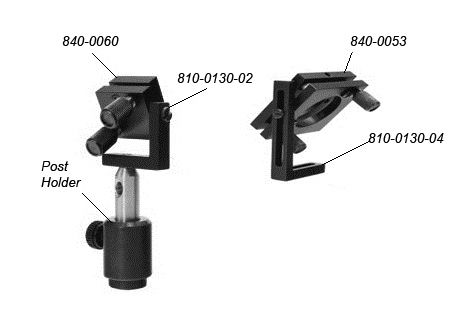

For coarse adjustments about horizontal axis compact Mirror mounts can be used with Mini Angle Brackets.
