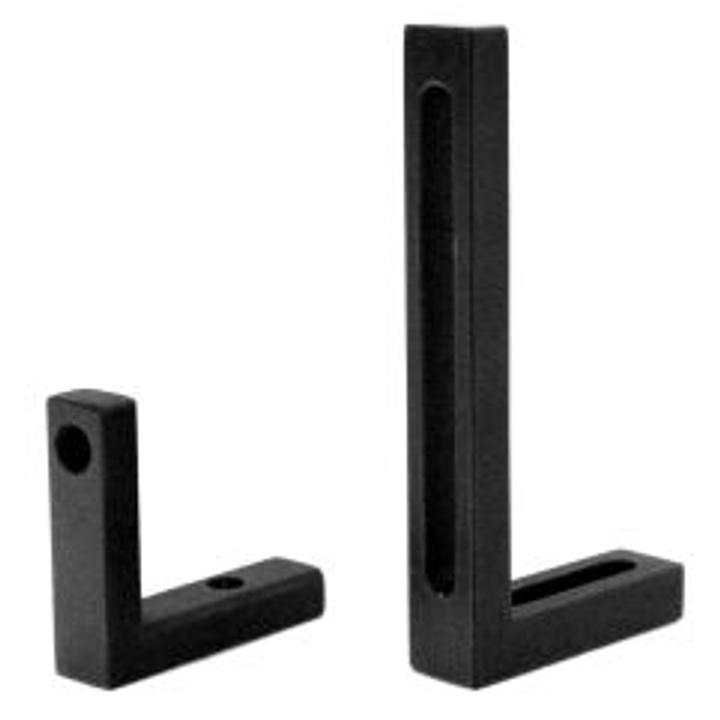

Mini Angle Brackets 810-0130 SKU: 810-0130-02
Mini Angle Brackets 810-0130 are used to increase the functionality of Mini and Micro series Optical positioners. Model 810-0130-02 enables to establish a postioner at any angle. 810-0130-04 also provides height orientation, as it has two 4.2 mm clearance slots. For coarse…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Angle Bracket |
| Width | 9 mm |
| Length | 35 mm |
| Height | 31 mm |
| Thickness | 6 mm |
| Mount Material and Coating | Black Anodised Aluminum |
| Weight | 0.01 kg |
| Mounting Thread | M4 |
