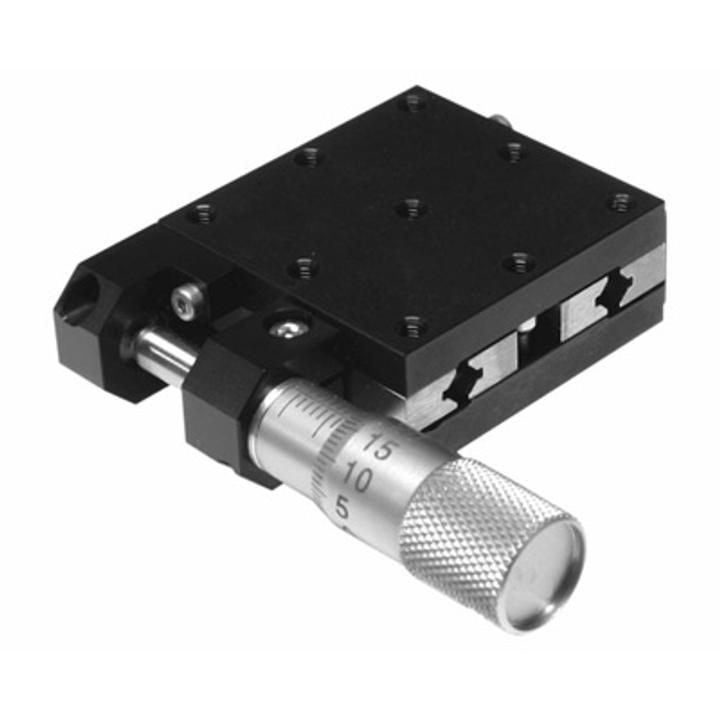

Aluminium Ball Bearing Stage 860-0096 SKU: 860-0096
• Compact design • Precise movement • 13 mm travel range • Lockable • X-Y direct stacking
Shared product specifications
These specifications apply across the Aluminium Ball Bearing Stage 860-0096 product family.
| Drive type | Side |
| Travel range | 13 mm |
| Sensitivity | 1 µm |
| Angular deviation | < 200 µrad |
| Tracking accuracy | 2 µm |
| Reading accuracy | 5 µm (1 / 2 division) |
| Load capacity: / horizontal / vertical | 10 kg / 3 kg |
| Lead screw pitch | 0.5 mm |
| Guide | Ball bearings |
| Material | aluminium |
| Finish | black anodized |
| Weight | 0.12 kg |
| Assemblies: X-Y Z | directly / 810-0112 |
Classification
| Type | translation|rotation |
