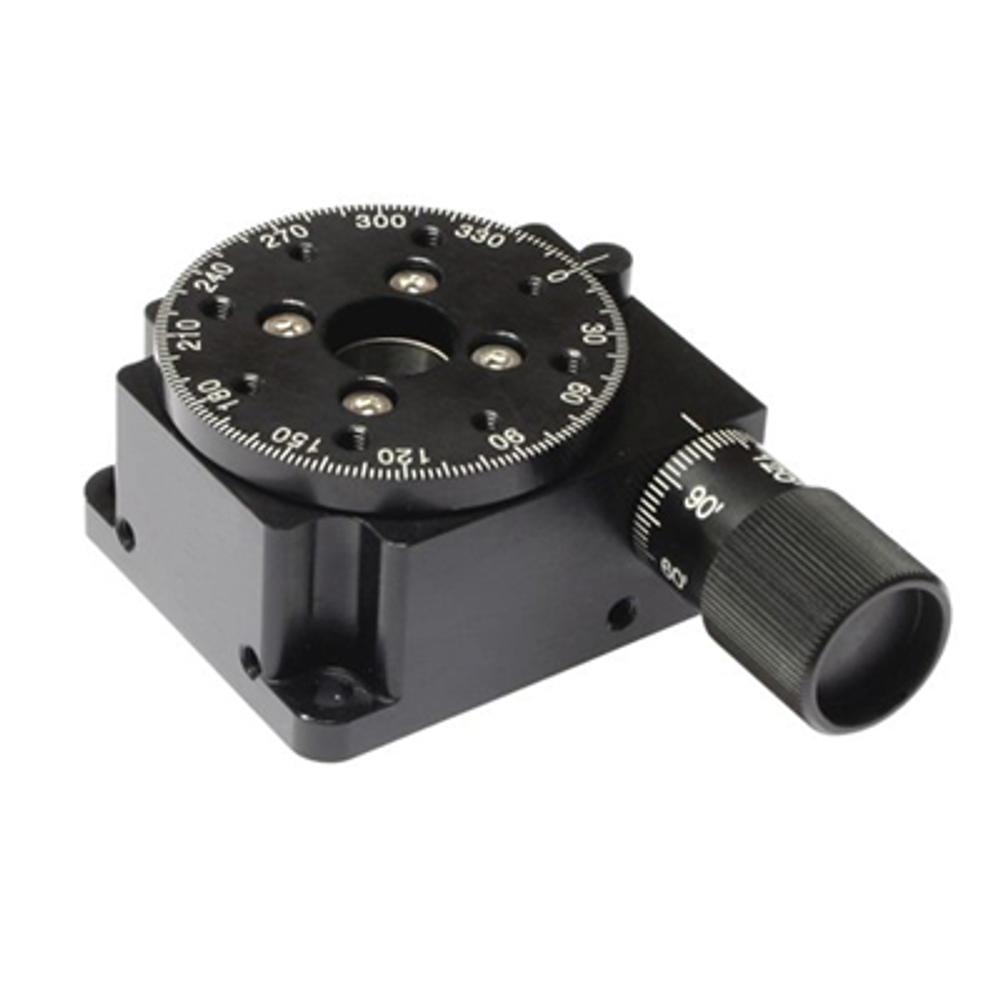

Mini Rotation Stage 860-0170
• Worm gear design • Ø11 mm clear aperture in the center • Very compact design 46×65 mm • No need in adapter plate for mounting (there are mounting holes on bottom) • Resolution 3 arcmin The Advantages of Rotation… Read more →
Order
| SKU | Product Type | Rotation Range, coarse | Platform Size, mm | Load Capacity Horizontal | Mount Clear Aperture | |
|---|---|---|---|---|---|---|
| 860-0170 | Manual Rotation Stage | 360 deg 0 min 0 sec | Ø39.6 | 4 kg | 11 mm |
Out of stock
$455
|
Specifications
| Product Type | Manual Rotation Stage |
| Rotation Range, coarse | 360 deg 0 min 0 sec |
| Reading Accuracy - Angular | 0 deg 3 min 0 sec |
| Wobble | 0 deg 1 min 0 sec |
| Eccentricity | 10 µm |
| Platform Size, mm | Ø39.6 |
| Load Capacity Horizontal | 4 kg |
| Load Capacity Vertical | 1.5 kg |
| Mounting Thread | M3, M2.5 |
| Mount Clear Aperture | 11 mm |
| Width | 46 mm |
| Length | 65 mm |
| Height | 26 mm |
| Rotation Resolution | 0 deg 3 min 0 sec |
| Rotation Sensitivity | 0 deg 1 min 0 sec |
Description
- Worm gear design
- Ø11 mm clear aperture in the center
- Very compact design 46×65 mm
- No need in adapter plate for mounting (there are mounting holes on bottom)
- Resolution 3 arcmin
The Advantages of Rotation Stage 860-0170 regarding the analogues of other manufacturers is the existence of an Ø11 mm aperture in the center of the rotation stage while it has very compact dimensions 46x65 mm together with its high precision, there is no need to use extra adapter plate for mounting since there are mounting holes on bottom.
