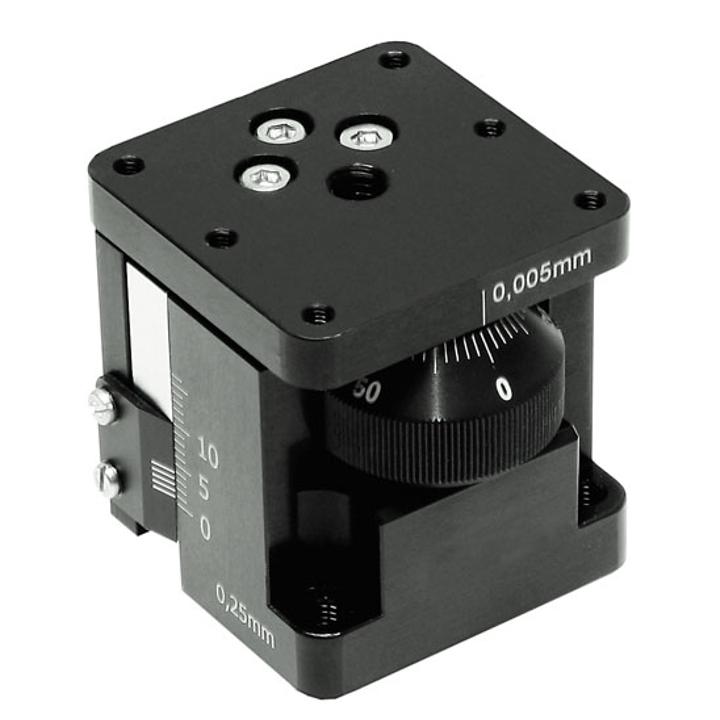

Vertical Stage 860-0099 SKU: 860-0099
• Compact • High precision • Travel range 13 mm • See 860-0098 for 5 mm travel • Motorized version 960-0199 is available Vertical Stage 860-0099 is made in most compact design. Vernier scale is engraved on one side of the stage. Travel range is 13 mm. Four M4 holes are made…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Travel Range | 13 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 1 µm |
| Reading Accuracy - Linear | 5 µm |
| Possible Axis Configurations | Z |
| Load Capacity Horizontal | 5 kg |
| Weight | 0.25 kg |
| Mounting Thread | M6, M4, M3 |
| Width | 43.2 mm |
| Length | 45 mm |
| Height | 55 mm |
| Lead Screw Pitch | 0.25 mm |
