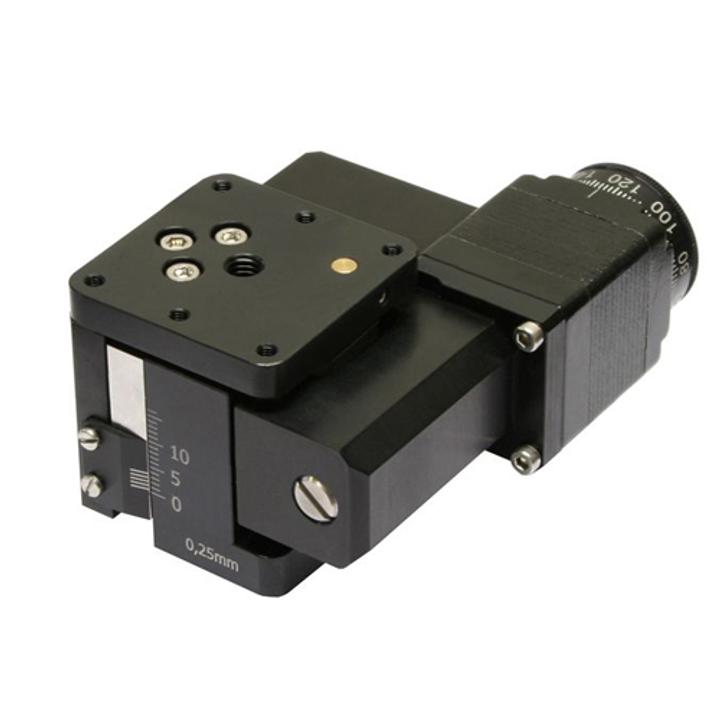

Motorized Vertical Translation Stage 960-0199 SKU: 960-0199-01
• Travel range 13 mm • Motors of other types are available • Stacks directly with stages 970-0080, 860-0170, 860-0096 and 860-0098-02 or 860-0099 • Vacuum version is available Motorized Vertical Translation Stages 960-0199 is made in most compact design. The platform has a…
Variant specifications
| Specification | Value |
|---|---|
| Travel range, mm | 13 mm |
| Lead screw pitch, mm | 1 mm |
Shared product specifications
These specifications apply across the Motorized Vertical Translation Stage 960-0199 product family.
| Model | 960-0199-01 |
| Travel range, mm | 13 |
| Lead screw pitch, mm | 1 |
| Reduction gear ratio | 1 / 60 |
| Resolution in full step*, μm | 0.083 |
| Resolution in 1 / 8 step, µm | 0.01 |
| Max speed*, mm / s | 0.416 |
| Load capacity, kg | 6 |
| Cable | integrated, 1.6 m length |
| Motor connector | HDB15(M) |
| Stepper motor | 28S |
| Mechanical limit switches | two end switches |
| Type | Pushed is "closed" |
