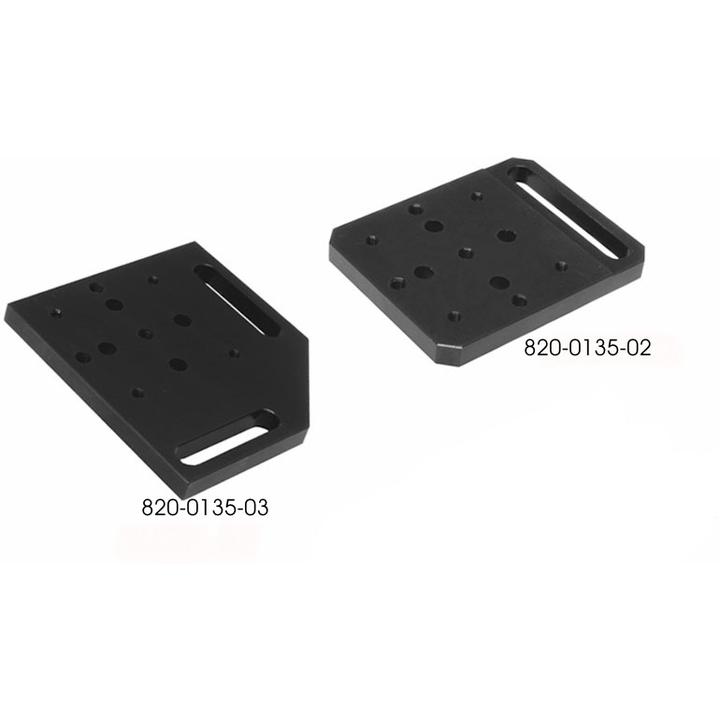

Universal Base Plates 820-0135 SKU: 820-0135-04
Universal Base Plates are designed for attaching translation and rotation stages to optical tables or to another stages. 820-0135-02 is designed for stages like 820-0135-03 plus 860-0060-02, 860-0060-04, 960-0060-02, 960-0060-04. 820-0135-03 is designed for 850-0200, 860-0054,…
Shared product specifications
These specifications apply across the Universal Base Plates 820-0135 product family.
| 820-0135-02 Universal Base Plate - Solidworks file | |
| 820-0135-02 Universal Base Plate - DWG file |
Variant files
Technical drawings, models and data files for SKU 820-0135-04.
Product brochures
Shared documentation for the complete product family.
