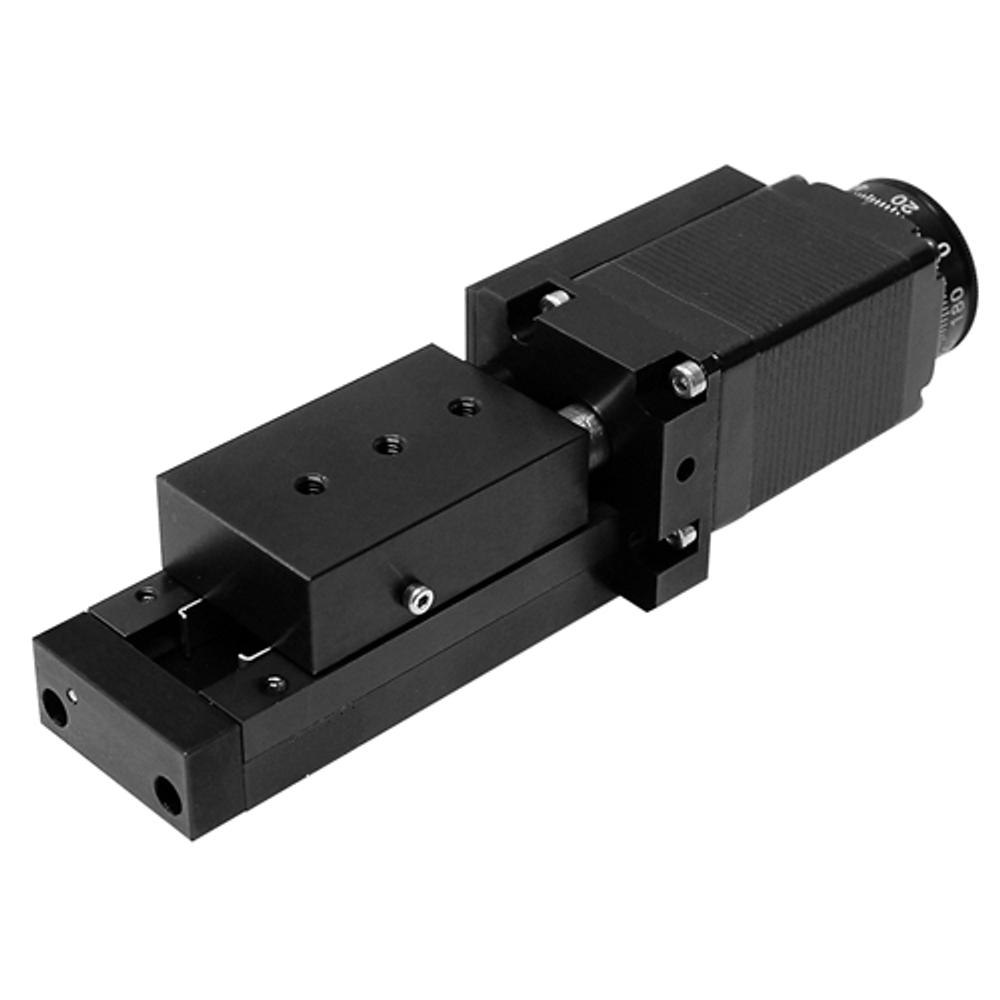

Narrow (width 30 mm) Motorized Translation Stages 960-0060
• Narrow (30 mm) • Compact design • High guide way accuracy • Lead screw pitch 0.25 mm • Travel 10, 20, 25, 30 mm • Optional travel 5, 6, 8 mm and other X-Y-Z configurations available Motorized Translation Stages… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 960-0060-01 | Motorized Translation Stage | Black Anodised Aluminum | 10 mm | X | 5 kg |
Out of stock
$598
|
| 960-0060-02 | Motorized Translation Stage | Black Anodised Aluminum | 20 mm | X | 5 kg |
Out of stock
$587
|
| 960-0060-03 | Motorized Translation Stage | Black Anodised Aluminum | 25 mm | X | 5 kg |
Out of stock
$622
|
| 960-0060-04 | Motorized Translation Stage | Black Anodised Aluminum | 30 mm | X | 5 kg |
Out of stock
$659
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Motorized Translation Stage |
| Mount Material and Coating | Black Anodised Aluminum |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 5 kg |
| Load Capacity Vertical | 2 kg |
| Maximum Travel Speed | 5 mm/s |
| Cable Length, m | 1.6 m |
| Mounting Thread | M6, M4 |
| Width | 30 mm |
| Height | 36.5 mm |
| Travel Resolution | 1.25 µm |
| Lead Screw Pitch | 0.25 mm |
Description
- Narrow (30 mm)
- Compact design
- High guide way accuracy
- Lead screw pitch 0.25 mm
- Travel 10, 20, 25, 30 mm
- Optional travel 5, 6, 8 mm and other X-Y-Z configurations available
Motorized Translation Stages 960-0060 are created on the base of 860-0060 translators.
Mechanical parameters of the motorized stages are the same as of translators 860-0060. Resolution, speed and load capacity all depend on parameters of motor, leading gear, as well as on the controller and driving mode a user chooses to use.
For vertical (Z axis) mounting we offer angle bracket 810-0150. Custom brackets are available.
Two mechanical limit switches built into each translation stage used for emergency stop at ends of travel range or to establish a reference position with accuracy of several motor steps.
Motor position can be visually determined with accuracy of one step by reading a scale engraved on dial knob fitted on motor shaft (use encoder for monitoring exact position using PC).
Body and platform of 960-0060 are made of black finished aluminium. Functional parts are made of steel. Revolution sensor or encoder are available on request. More information.
