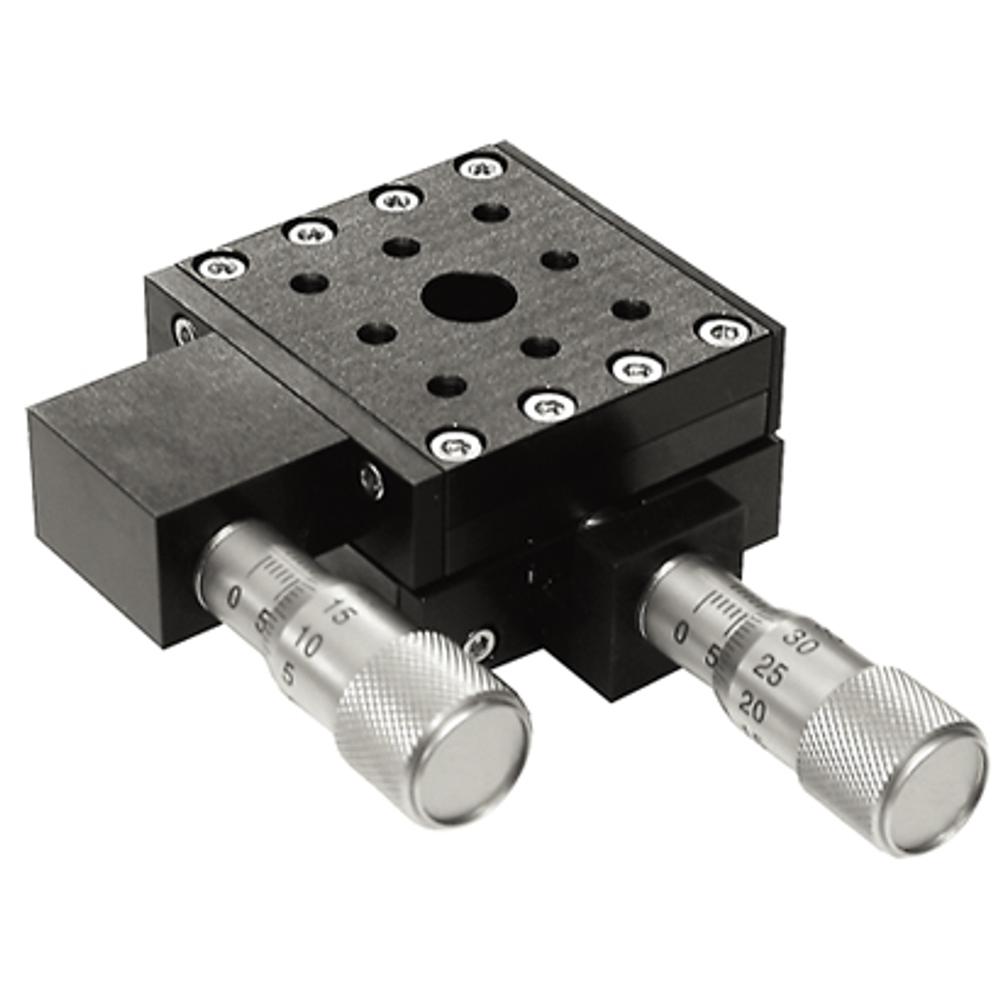

Low Profile Two-Axes Aluminium Translation Stage of Side Control 860-0094-02
• A rare opportunity to control an X-Y translation stage by access from a single side For your convenience we have rotated the driving screw for X axis in the Translation Stage 860-0094-02 by 90°. Now it is situated… Read more →
Order
| SKU | Product Type | Mount Material and Coat | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0094-02 | Manual Translation Stage | Black Anodised Aluminum | 10 mm | XY | 15 kg |
Out of stock
$574
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coat | Black Anodised Aluminum |
| Travel Range | 10 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 5 µm |
| Possible Axis Configurations | XY |
| Load Capacity Horizontal | 15 kg |
| Load Capacity Vertical | 5 kg |
| Weight | 0.38 kg |
| Width | 51 mm |
| Length | 51 mm |
| Height | 28 mm |
Description
- A rare opportunity to control an X-Y translation stage by access from a single side
For your convenience we have rotated the driving screw for X axis in the Translation Stage 860-0094-02 by 90°. Now it is situated parallel to Y axis adjustment screw, so the stage is controlled from a single side. This helps in optical schemes of great concentration.
In other aspects, including the specifications, the stage is the same as 860-0094.
