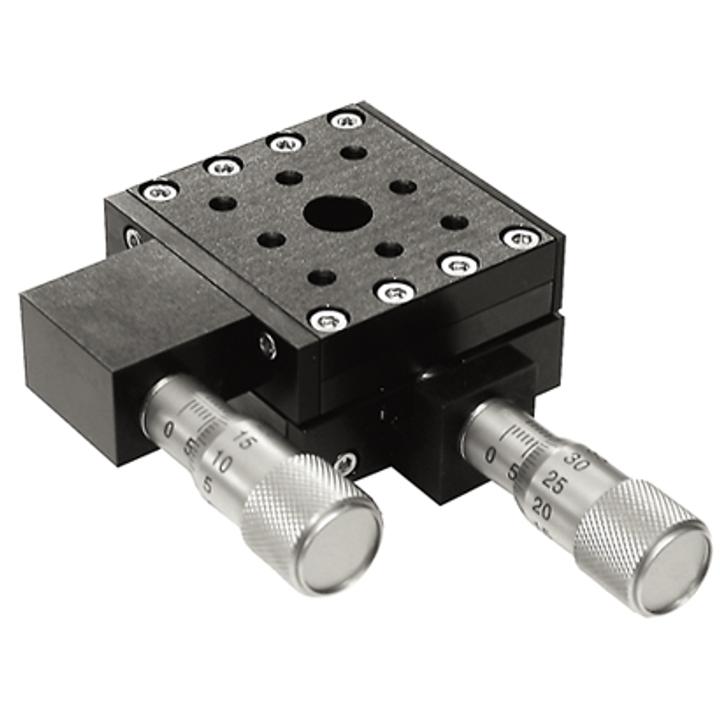

Low Profile Two-Axes Aluminium Translation Stage of Side Control 860-0094-02 SKU: 860-0094-02
• A rare opportunity to control an X-Y translation stage by access from a single side For your convenience we have rotated the driving screw for X axis in the Translation Stage 860-0094-02 by 90°. Now it is situated parallel to Y axis adjustment screw, so the stage is…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Translation Stage |
| Mount Material and Coat | Black Anodised Aluminum |
| Travel Range | 10 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 5 µm |
| Possible Axis Configurations | XY |
| Load Capacity Horizontal | 15 kg |
| Load Capacity Vertical | 5 kg |
| Weight | 0.38 kg |
| Width | 51 mm |
| Length | 51 mm |
| Height | 28 mm |
