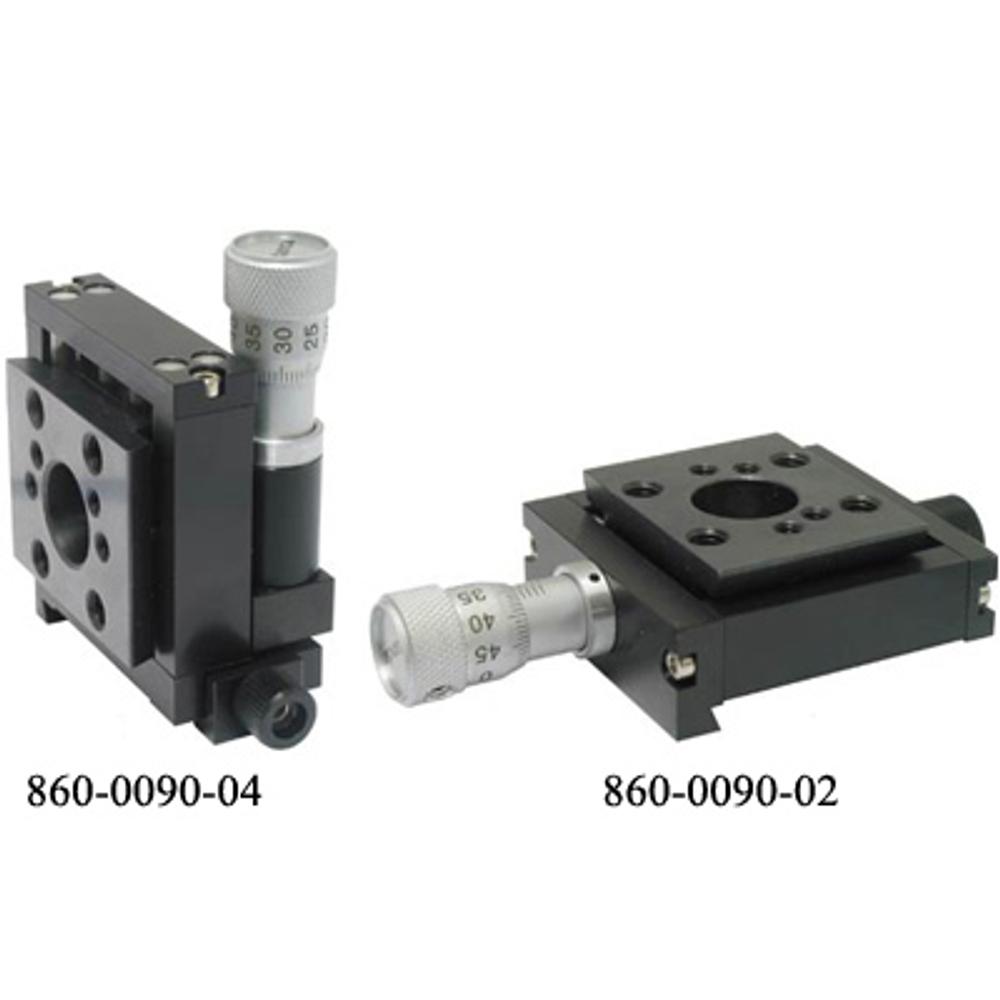

Mini Rail System Ball Slide Positioners 860-0090-02, 860-0090-04
The Mini Rail System Ball Slide Positioner 860-0090-02 has a travel range of 5 mm. Using the micrometer driving screw mounted into M10×1 taped hole, the resolution of 10 µm is achieved. Positioners have adapters for… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 860-0090-02 |
Out of stock
$267
|
|
| 860-0090-04 |
Out of stock
$288
|
Specifications
| 860-0090-02 | 860-0090-04 | |
|---|---|---|
| Travel range | 5 mm | 5 mm |
| Sensitivity | 1 µm | 1 µm |
| Rough XY travel range | ± 20 mm | ± 20 mm |
| Tracking accuracy | 2 µm | 2 µm |
| Reading accuracy | 5 µm (1 / 2 division) | 5 µm (1 / 2 division) |
| Load capacity: / horizontal / vertical | 3 kg / 1 kg | 3 kg / 1 kg |
Classification
| Type | translation|rotation |
Description
The Mini Rail System Ball Slide Positioner 860-0090-02 has a travel range of 5 mm. Using the micrometer driving screw mounted into M10×1 taped hole, the resolution of 10 µm is achieved.
Positioners have adapters for mounting onto mini optical rail system rails and can be locked in a position using a fixing screw. With a help of Rail Carriers the Mini Rail System Ball Slide Positioner 860‑0090-02 can be coarsely positioned in 30 mm. W
With two 860-0090-02 and one 860-0090-01 you may stack the X-Y-Z applications directly. 810-0010 for building optical bench or precise optical rail system suitable for these precise positioners.
