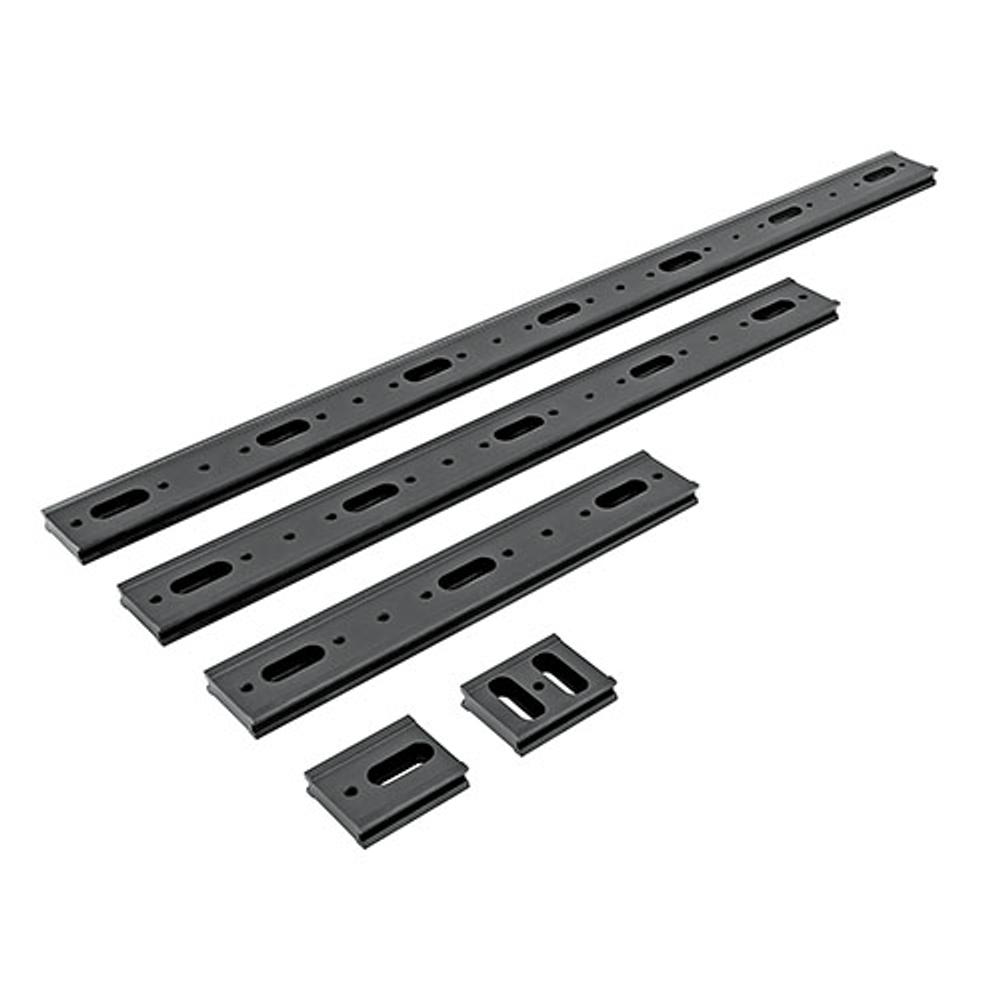

Steel Optical Rails 810-0010

Steel Optical Rails 810-0010

Steel Optical Rails 810-0010 have low profile and are provided in different lengths from hardened steel. They have M6 taped holes pattern and Ø6.4 mm clearance slots for mounting on optical plates, opto-mechanical… Read more →

From $71 Configure & order →

Configure & order — pick a catalog variant or configure your own

Product

Length 55 mm - 670 mm · 4 values Any mm
mm
5 catalog variants — refine the spec to narrow it down.
SKU Product Type Width Length Height Mount Material and Coat
810-0010-02 Steel Optical Rail 42.5 mm 55 mm 12 mm Hardened Steel
Out of stock
$71
810-0010-04 Steel Optical Rail 42.5 mm 270 mm 12 mm Hardened Steel
3 in stock Ships in: 2–5 calendar days
$137
810-0010-06 Steel Optical Rail 42.5 mm 470 mm 12 mm Hardened Steel
Out of stock
$167
810-0010-08 Steel Optical Rail 42.5 mm 670 mm 12 mm Hardened Steel
Out of stock
$203
810-0010-10 Steel Optical Rail 42.5 mm 55 mm 12 mm Hardened Steel
Out of stock
$77

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type Steel Optical Rail
Width 42.5 mm
Height 12 mm
Mount Material and Coat Hardened Steel

Description

Steel Optical Rails 810-0010 have low profile and are provided in different lengths from hardened steel. They have M6 taped holes pattern and Ø6.4 mm clearance slots for mounting on optical plates, opto-mechanical elements and for interconnections. These rails have a dovetail design, which offers smooth, wobble free translation of carriers.
