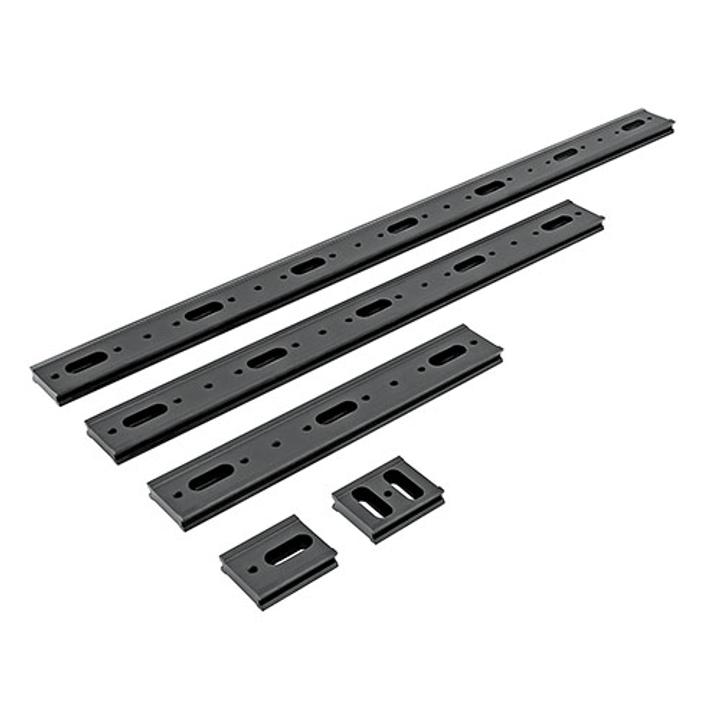

Steel Optical Rails 810-0010 SKU: 810-0010-10
Steel Optical Rails 810-0010 have low profile and are provided in different lengths from hardened steel. They have M6 taped holes pattern and Ø6.4 mm clearance slots for mounting on optical plates, opto-mechanical elements and for interconnections. These rails have a dovetail…
Variant specifications
| Specification | Value |
|---|---|
| L, mm | 55 mm |
| Clearance slots | 2 |
| M6 holes | 1 |
Shared product specifications
These specifications apply across the Steel Optical Rails 810-0010 product family.
| Steel Optical Rails - Solidworks file | |
| Steel Optical Rails - DWG file | |
| Steel Optical Rails - STEP file |
Classification
| Type | brackets|rails |
Product brochures
Shared documentation for the complete product family.
