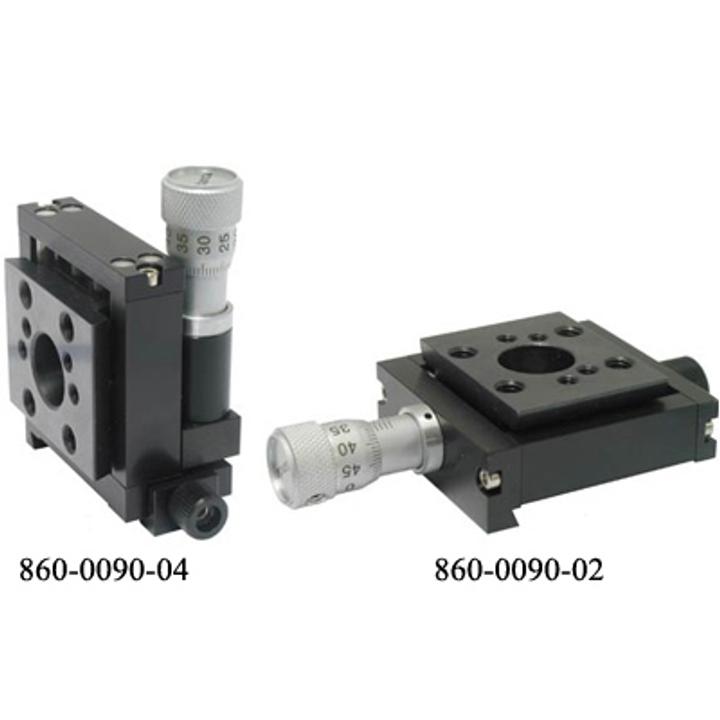

Mini Rail System Ball Slide Positioners 860-0090-02, 860-0090-04 SKU: 860-0090-02
The Mini Rail System Ball Slide Positioner 860-0090-02 has a travel range of 5 mm. Using the micrometer driving screw mounted into M10×1 taped hole, the resolution of 10 µm is achieved. Positioners have adapters for mounting onto mini optical rail system rails and can be locked…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Mini Rail System Ball Slide Positioner |
| Weight | 0.18 kg |
| Width | 50 mm |
| Length | 18 mm |
| Height | 52 mm |
Variant files
Technical drawings, models and data files for SKU 860-0090-02.
Product brochures
Shared documentation for the complete product family.
