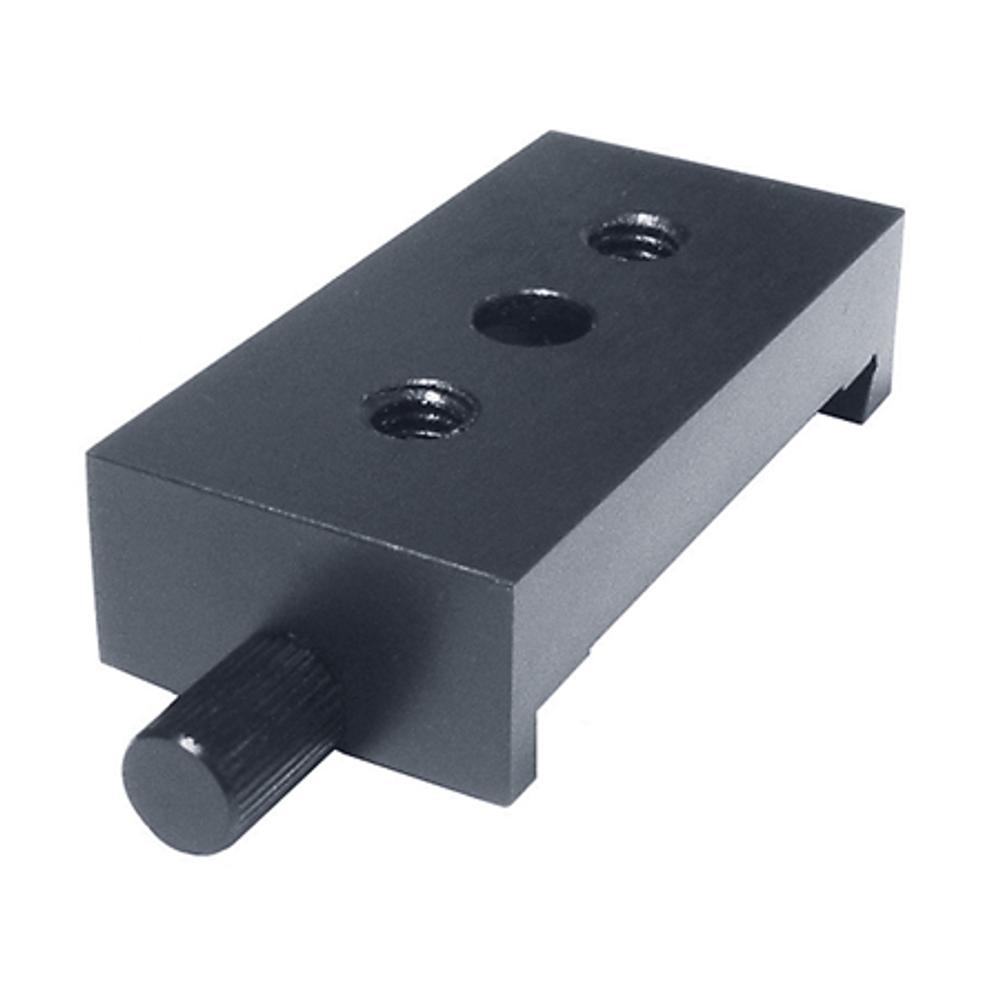

Steel Rail Carriers 810-0020
Rail Carriers 810-0020 may be quickly lifted and set again on the rail. Slide the carrier to any point on the rail and secure it with the fixing screw. The carriers have a pattern of M6 tapped holes and Ø6.4 mm mounting… Read more →
Listed in
Configure & order — pick a catalog variant or configure your own
| SKU | Description · Size | |
|---|---|---|
| 810-0020-02 | Three M6 clearance holes·50 x 50 mm |
Out of stock
$85
|
| 810-0020-04 | Ø18 mm clear aperture, two M6 clearance holes·50 x 50 mm |
Out of stock
$85
|
| 810-0020-06 | One M6 clearance hole·50 x 25 mm |
5 in stock
Ships in: 2–5 calendar days
$59
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.
Specifications
| Steel Rail Carriers - Solidworks file | |
| Steel Rail Carriers - DWG file | |
| Steel Rail Carriers - STEP file |
Classification
| Type | brackets|rails |
Description
Rail Carriers 810-0020 may be quickly lifted and set again on the rail. Slide the carrier to any point on the rail and secure it with the fixing screw. The carriers have a pattern of M6 tapped holes and Ø6.4 mm mounting holes for fastening of other opto-mechanical elements.
Design of the carriers allows to achieve high versatility within small space. Carrier 810-0020-04 has Ø18 mm clear aperture. Precision Carriers 810-0020 come in two available widths: 25 mm and 50 mm. Carrier 810-0020-06 may be used as a reference positioning component for repeated positioning. Units, such as 810-0020-04 or 860-0090-02 may be reinserted exactly into the same position next to the reference carrier.
The Rail Carriers are made of black finished hardened steel.
