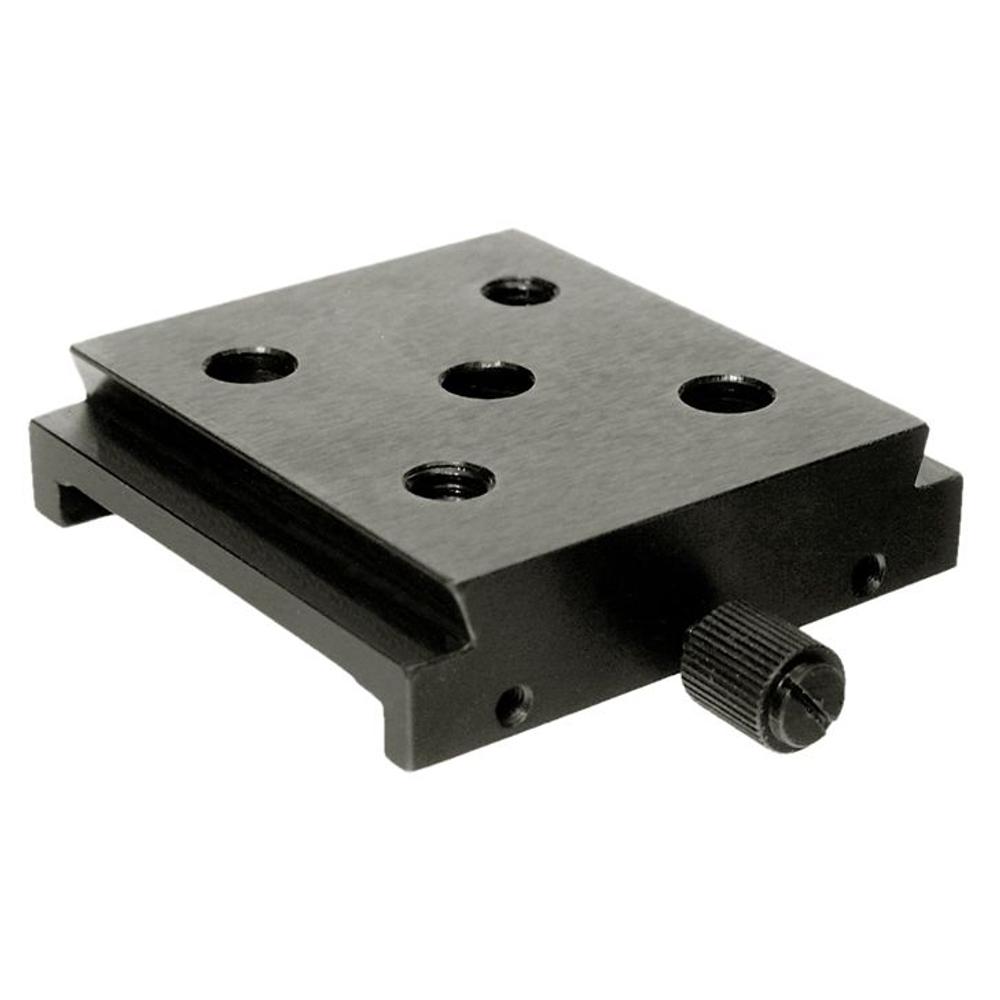

Sliding Rail Carrier 810-0030
Sliding Rail Carrier 810-0030 - a universal platform, which has additional upper rails orthogonal to lower base rails. The Carrier allows to attach any unit of steel optical rail system on the Steel Optical Rail… Read more →
Order
| SKU | Product Type | Width | Length | Height | Mount Material and Coat | |
|---|---|---|---|---|---|---|
| 810-0030 | Steel Rail Carrier | 50 mm | 50 mm | 13 mm | Blackened Steel |
Out of stock
$99
|
Specifications
| Product Type | Steel Rail Carrier |
| Width | 50 mm |
| Length | 50 mm |
| Height | 13 mm |
| Mount Material and Coat | Blackened Steel |
| Weight | 0.14 kg |
Description
Sliding Rail Carrier 810-0030 - a universal platform, which has additional upper rails orthogonal to lower base rails. The Carrier allows to attach any unit of steel optical rail system on the Steel Optical Rail 810-0010, to move it easily along the Optical Rail and to fix it across within ±15mm. The carrier has a pattern of M6 and Ø6.4 mounting holes.
The Sliding Rail Carrier is made of black finished hardened steel.

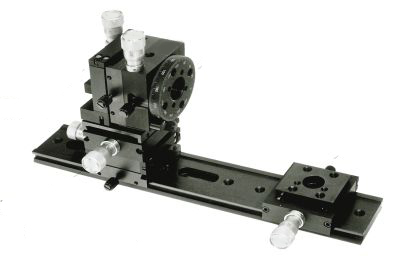

Stacked rail carriers enable only coarse adjustment along X and Y axes. Z-axis translator 860-0090-04 can point it's Ø 15 mm aperture 90° to the side - on single or along the rail - on stacked carriers.
