Mini Rotation Stage 860-0120

Mini Rotation Stage 860-0120

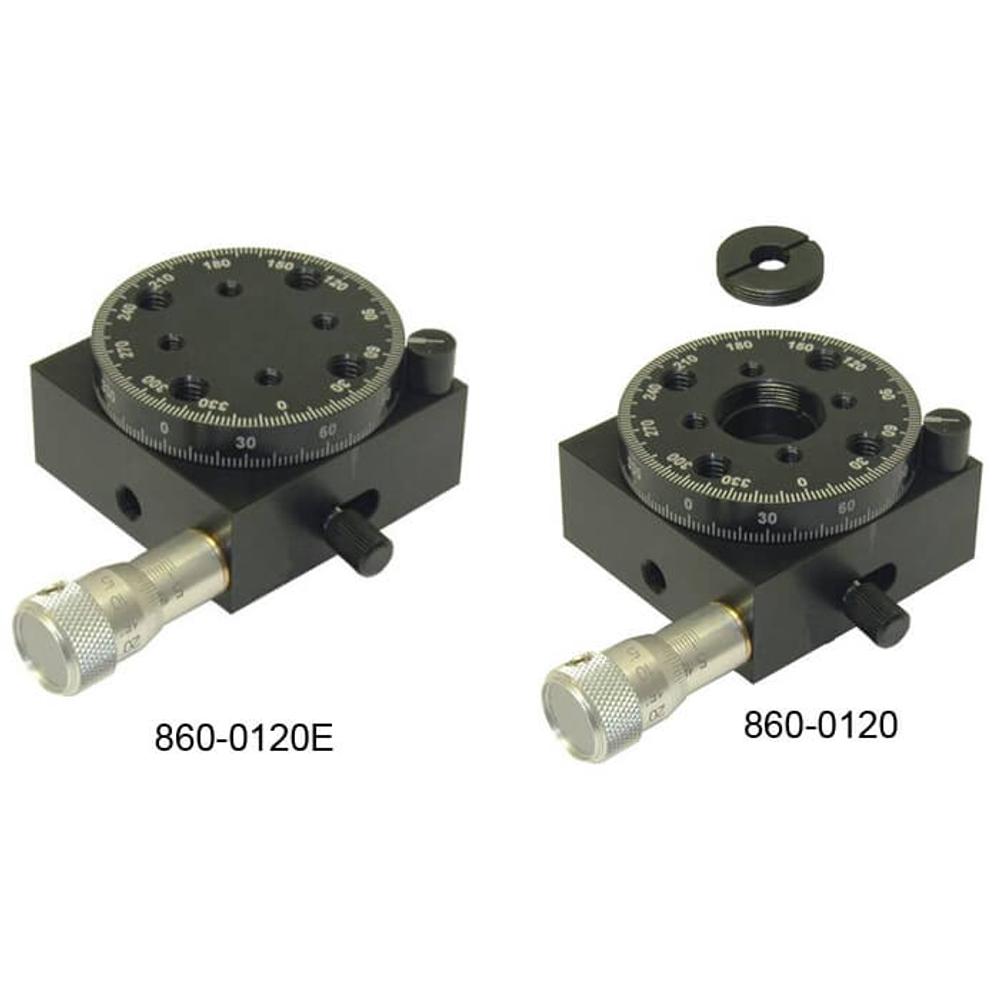

Mini Rotation Stage 860-0120 provides smooth, low friction 360° rotation. A micrometer driving screw renders resolution of 1'. A clear aperture of Ø15 mm allows attachment of lenses and filters directly in front of the… Read more →

From $342 Configure & order →

Order

SKU Product Type Rotation Range, coarse Platform Size, mm Load Capacity Horizontal Mount Clear Aperture
860-0120 Manual Rotation Stage 360 deg 50×50 5 kg 15 mm
Out of stock
$342
860-0120E Manual Rotation Stage 360 deg 50×50 5 kg —
Out of stock
$363

Specifications

Product Type Manual Rotation Stage
Rotation Range, coarse 360 deg
Rotation Range, fine 15 deg
Reading Accuracy - Angular 1 deg
Wobble 3 min
Platform Size, mm 50×50
Load Capacity Horizontal 5 kg
Load Capacity Vertical 2 kg
Weight 0.23 kg
Width 62 mm
Length 83 mm
Height 28.5 mm
Rotation Resolution 1 min

Description

Mini Rotation Stage 860-0120 provides smooth, low friction 360° rotation. A micrometer driving screw renders resolution of 1'. A clear aperture of Ø15 mm allows attachment of lenses and filters directly in front of the stage.

A removable ring (included) can be screwed into the aperture. The ring's hole is of Ø6.5 mm, so you can put an M6 screw from underneath to mount some component directly onto the stage.

860-0120 can be mounted to optical rails using rail carriers. “Clear top” design allows attachment of larger components.
