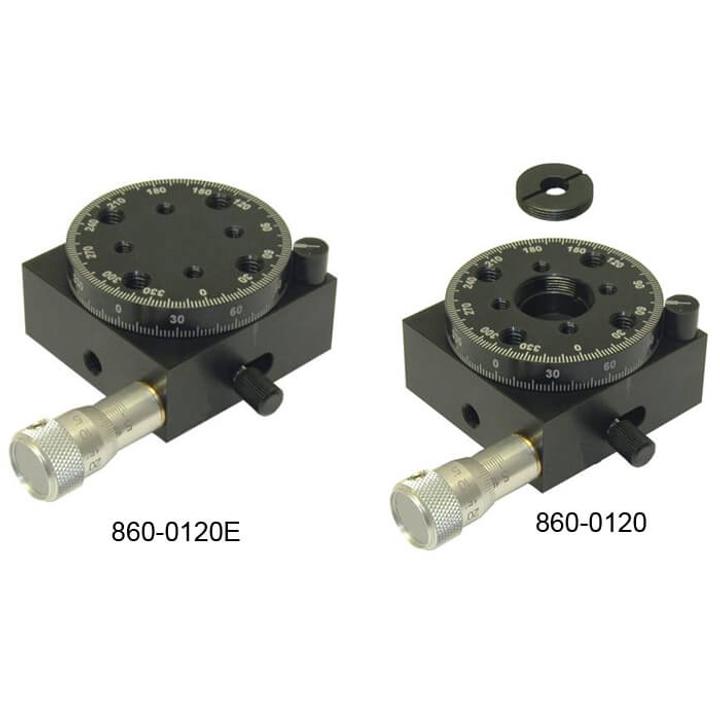

Mini Rotation Stage 860-0120 SKU: 860-0120
Mini Rotation Stage 860-0120 provides smooth, low friction 360° rotation. A micrometer driving screw renders resolution of 1'. A clear aperture of Ø15 mm allows attachment of lenses and filters directly in front of the stage. A removable ring (included) can be screwed into the…
Variant specifications
| Specification | Value |
|---|---|
| Description | Mini Rotation Stage with clear aperture of Ø 15 mm |
Shared product specifications
These specifications apply across the Mini Rotation Stage 860-0120 product family.
| Rotation | 360° coarse, 15° fine |
| Resolution | 1° coarse, 1' fine |
| Wobble | 3 arcmin |
| Load capacity: / horizontal / vertical | 5 kg / 2 kg |
| Weight, kg | 0.23 |
Classification
| Type | translation|rotation |
