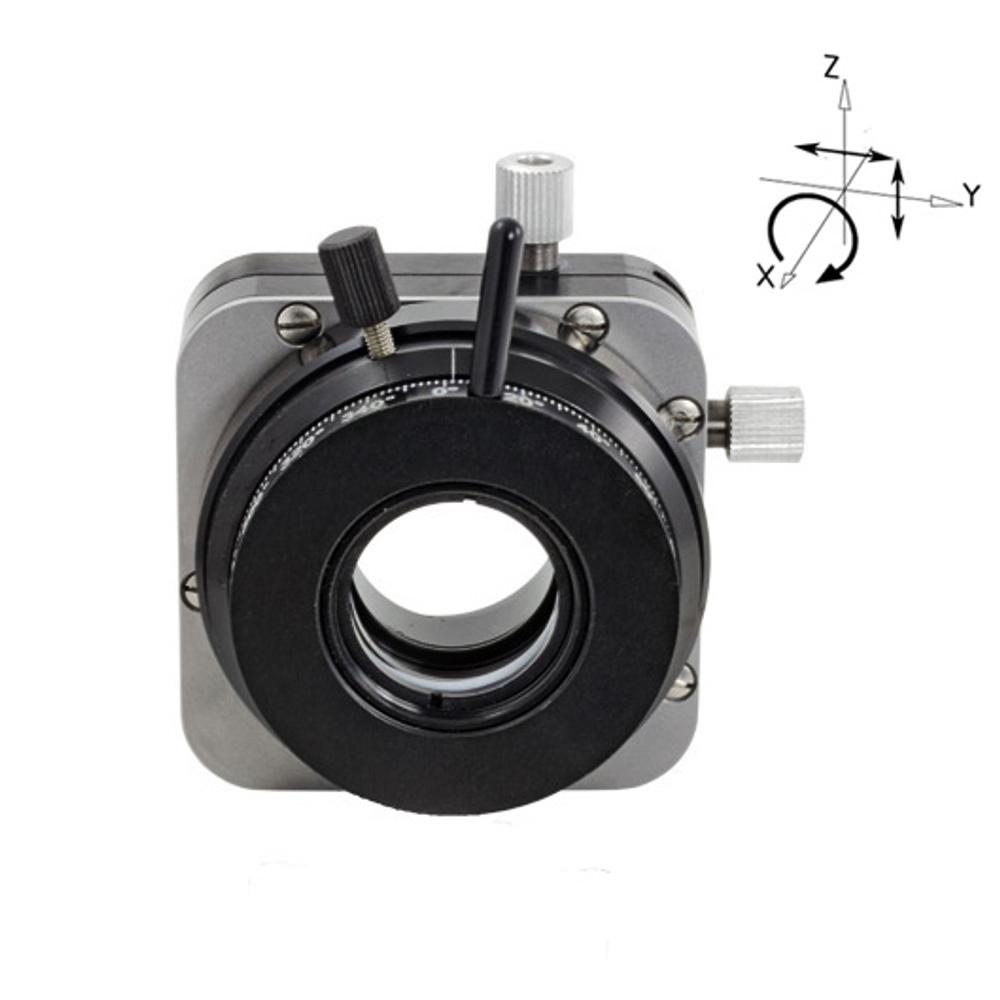

Two Axes Translation Polarizer Holder 840-0240
Two axes (Y-Z) translation stage with 2 mm travel range is driven by two screws. Two axes translation polarizer holder has M4 hole on the bottom and can be fitted in different mounting systems. A retaining ring M27x1,… Read more →
Order
| SKU | Product Type | Travel Range | Possible Axis Configurations | |
|---|---|---|---|---|
| 840-0240 | Translation Optical Mount | 2 mm | YZ |
Out of stock
$383
|
Specifications
| Product Type | Translation Optical Mount |
| Travel Range | 2 mm |
| Possible Axis Configurations | YZ |
| Weight | 0.27 kg |
| Width | 74 mm |
| Length | 42 mm |
| Height | 84 mm |
Description
Two axes (Y-Z) translation stage with 2 mm travel range is driven by two screws. Two axes translation polarizer holder has M4 hole on the bottom and can be fitted in different mounting systems. A retaining ring M27x1, two teflon rings and tightening key are included.
Two Axes Translation Polarizer Holder 840-0240 accepts optics of 25,4 mm diameter or with additionally provided adapter can accomodate smaller than 1'' (25.4 mm) optics. The rotation position (X axis) is indicated on 360° angular scale with a gradation of 2°. The rotation platform has a removable rod that allows continuous 360° rotation without obscuring the aperture. This removable rod can be fitted into any of the four holes (10°, 100°, 290°, 280°) on the perimeter of rotation platform.
