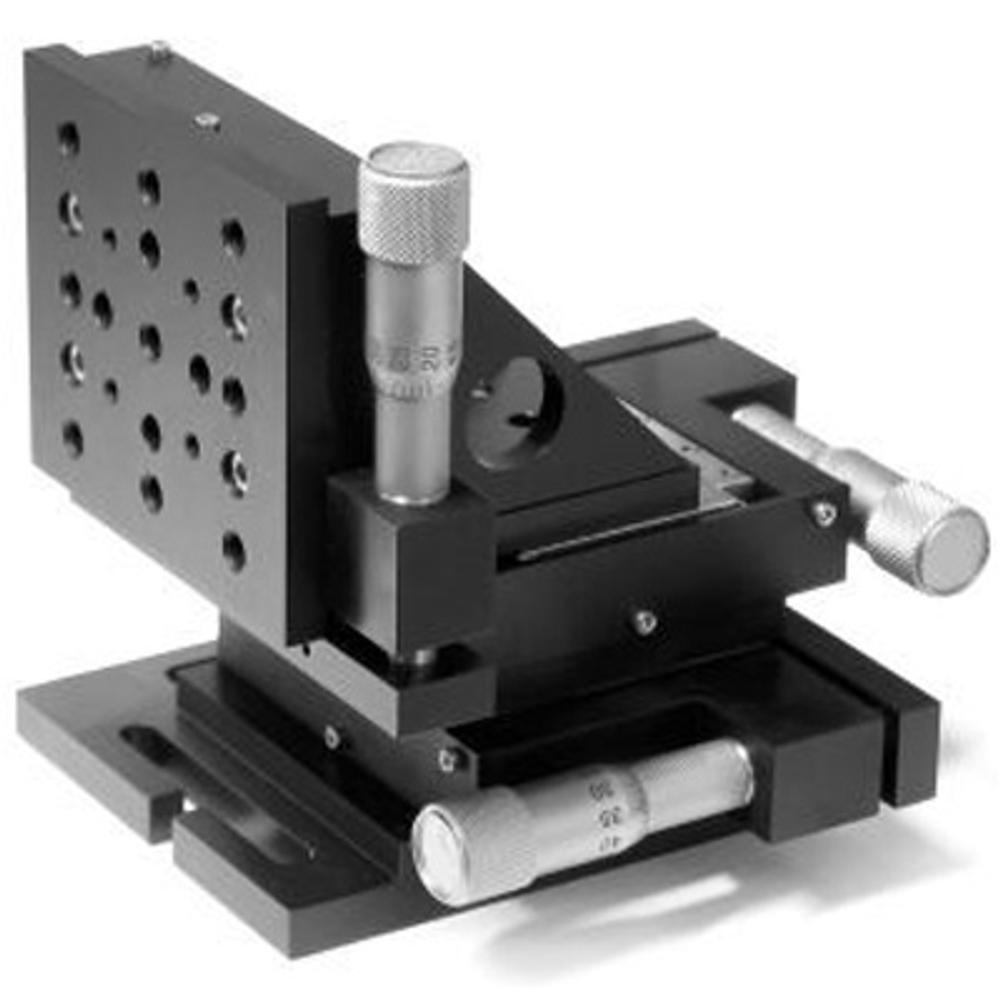

Translation System 860-0051XYZ
XYZ movement, micrometer drive within 15 mm travel range. Vacuum compatible translation system 860-0051V-XYZ is available. Translation system 860-0051XYZ is assembled of: • Three 860-0051 translation stages • One… Read more →
Order
| SKU | Product Type | Vacuum Compatibility | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0051M XYZ | Manual Translation Stage | False | 15 mm | XYZ | 5 kg |
Out of stock
$1,379
|
Specifications
| Product Type | Manual Translation Stage |
| Vacuum Compatibility | False |
| Travel Range | 15 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 10 µm |
| Possible Axis Configurations | XYZ |
| Load Capacity Horizontal | 5 kg |
| Weight | 1.35 kg |
| Mounting Thread | M6, M4 |
| Width | 120 mm |
| Length | 140 mm |
Description
XYZ movement, micrometer drive within 15 mm travel range. Vacuum compatible translation system 860-0051V-XYZ is available.
Translation system 860-0051XYZ is assembled of:
- Three 860-0051 translation stages
- One angle bracket 810-0110
- One plate 820-0136-01
- One connecting plate 820-0136-02
- One base plate 820-0136-03
