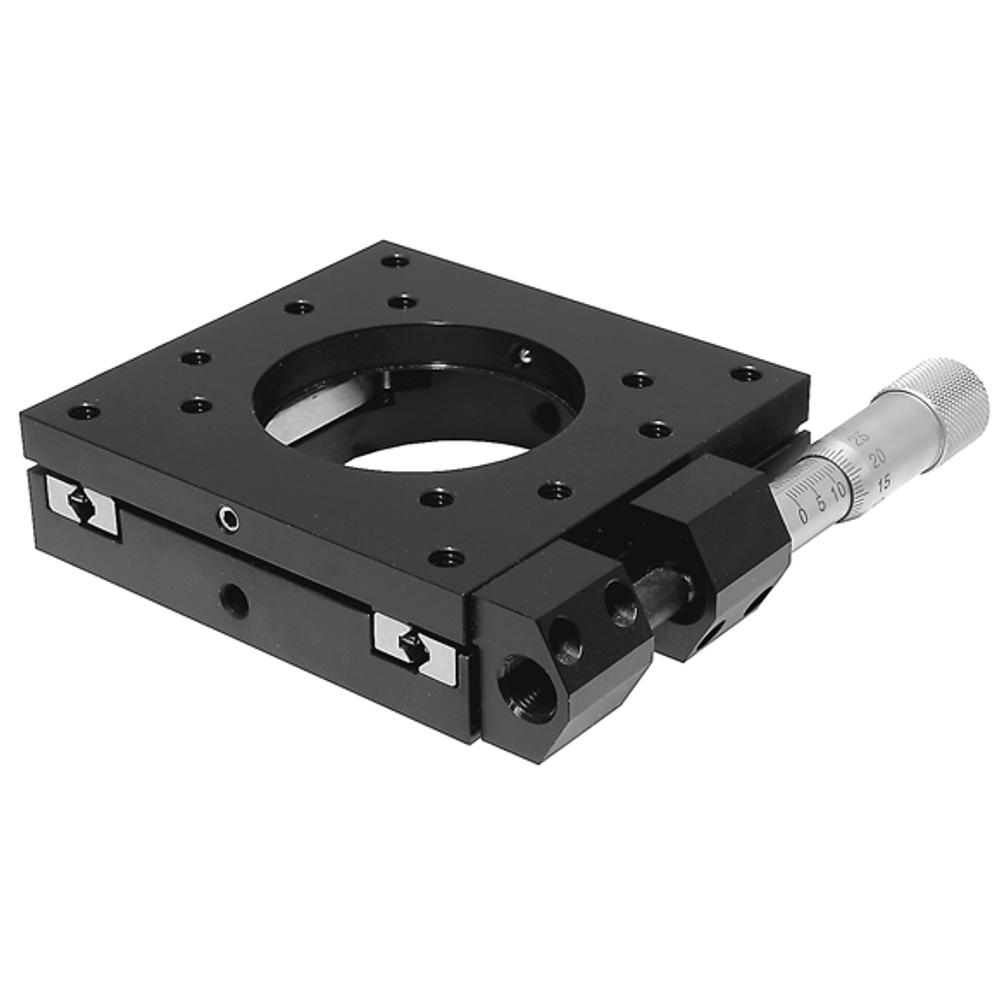

Low Profile Aluminium Translation Stages 860-0070
• Precision movement • 25, 50 mm travel ranges • Stackable for multi-axis positioning • Reversible for left or right hand applications • 2 inches (Ø50 mm) clear aperture • Insert platform with M6, M4 and clearance… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|
| 860-0070-02 | Manual Translation Stage | 25.4 mm | X | 16 kg |
Out of stock
$593
|
| 860-0070-02XY | Manual Translation Stage | 25.4 mm | XY | 16 kg |
Out of stock
$1,186
|
| 860-0070-02XYZ | Manual Translation Stage | 25.4 mm | XYZ | 16 kg |
Out of stock
$1,914
|
| 860-0070-04 | Manual Translation Stage | 50 mm | X | 16 kg |
Out of stock
$789
|
| 860-0070-04XYZ | Manual Translation Stage | 50 mm | XYZ | 16 kg |
Out of stock
$2,462
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Translation Stage |
| Travel Sensitivity | 1 µm |
| Reading Accuracy - Linear | 5 µm |
| Load Capacity Horizontal | 16 kg |
| Load Capacity Vertical | 7 kg |
| Mounting Thread | M6, M4 |
Description
- Precision movement
- 25, 50 mm travel ranges
- Stackable for multi-axis positioning
- Reversible for left or right hand applications
- 2 inches (Ø50 mm) clear aperture
- Insert platform with M6, M4 and clearance holes
Low Profile Aluminium Translation Stages 860-0070 provide single axis movement.
Items are fixed on a platform by M6 tapped holes. 860-0070-04 has M4 holes in addition. The stages have central clear aperture Ø50 mm (2 inch), which remains unobstructed over some 15 mm of travel. Close the aperture with an insert platform laid against the resting flange. The insert platform provides additional mounting holes, which you can rotate. It is locked by two fixing screws.
Angle Brackets 810-0115 (810-0116) tie the stages 860-0070-02 (860-0070-04) into an X-Z translation system.
