Compact Translation Stage 860-0010
The model 860-0010 compact translation stage is well suited for positioning applications in laboratory experiments requiring linear motion within small space. Ball bearing rolling between opposing of hardened, polished… Read more →
Order
| SKU | Product Type | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0010 | Manual Translation Stage | Black Oxidized Steel | 13 mm | X | 3 kg |
Out of stock
$155
|
| 860-0010-02 | Manual Translation Stage | Black Oxidized Steel | 13 mm | X | 3 kg |
Out of stock
$192
|
| 860-0010-04 | Manual Translation Stage | Black Oxidized Steel | 13 mm | X | 3 kg |
14 in stock
Ships in: 2–5 calendar days
$234
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coating | Black Oxidized Steel |
| Travel Range | 13 mm |
| Travel Sensitivity | 5 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 3 kg |
| Mounting Thread | M6 |
| Width | 46 mm |
| Length | 58 mm |
| Height | 25 mm |
| Lead Screw Pitch | 0.5 mm |
Description

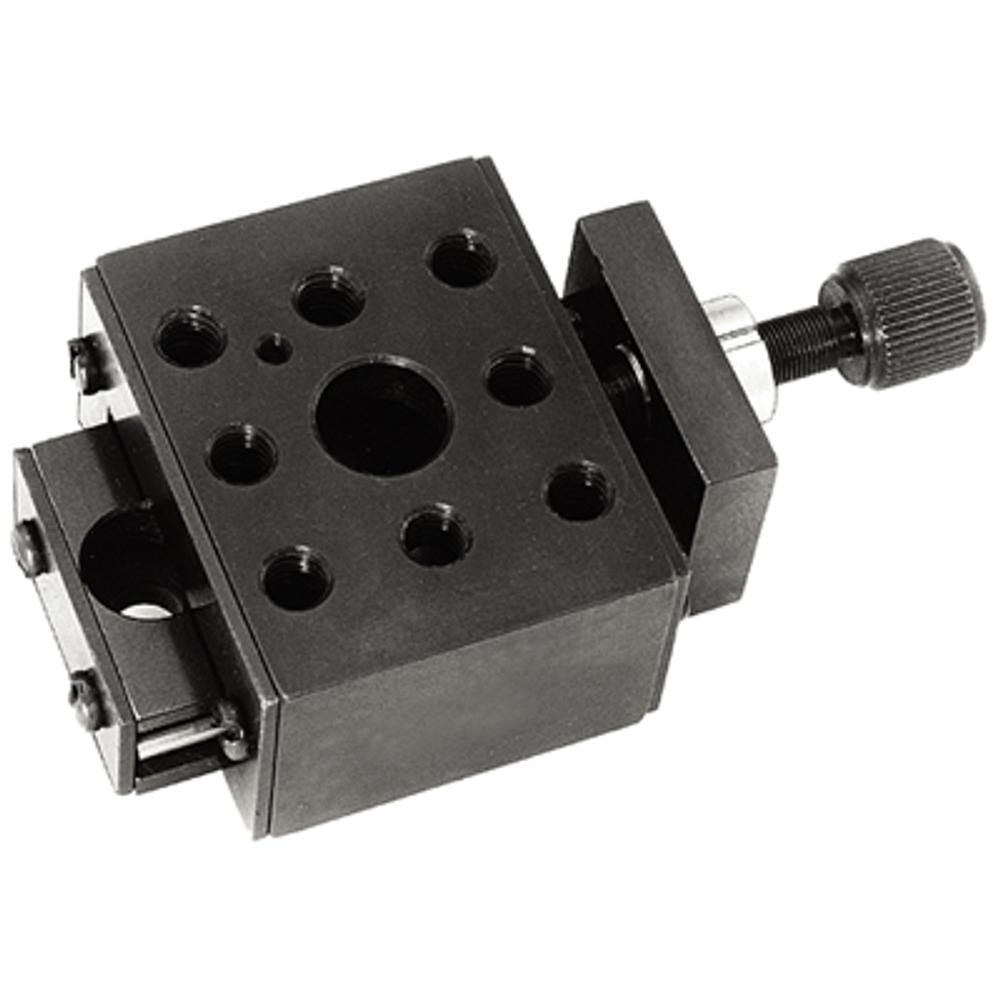

The model 860-0010 compact translation stage is well suited for positioning applications in laboratory experiments requiring linear motion within small space. Ball bearing rolling between opposing of hardened, polished steel rods provide smooth, accu-rate translating platform's ride.
Model 860-0010 stages are designed to stack for X-Y motion. Vertical motion may be also added using model 810-0100 angle bracket. Model 860-0010 stage provides 13 mm travel with 5 µm resolution and max. 3 kg loading capacity. Max. straightness is ± 6 µm only.
Model 860-0010 is completed with steel screw M6×0.5mm and brass collar with an outer thread M10×1mm for mounting. Additionally model 860-0010-02 is completed with model 870-0010 precise screw. 860-0010-04 option comes with model 870-0020 micrometer screw with reading marks.
Finish: black oxidized steel.
