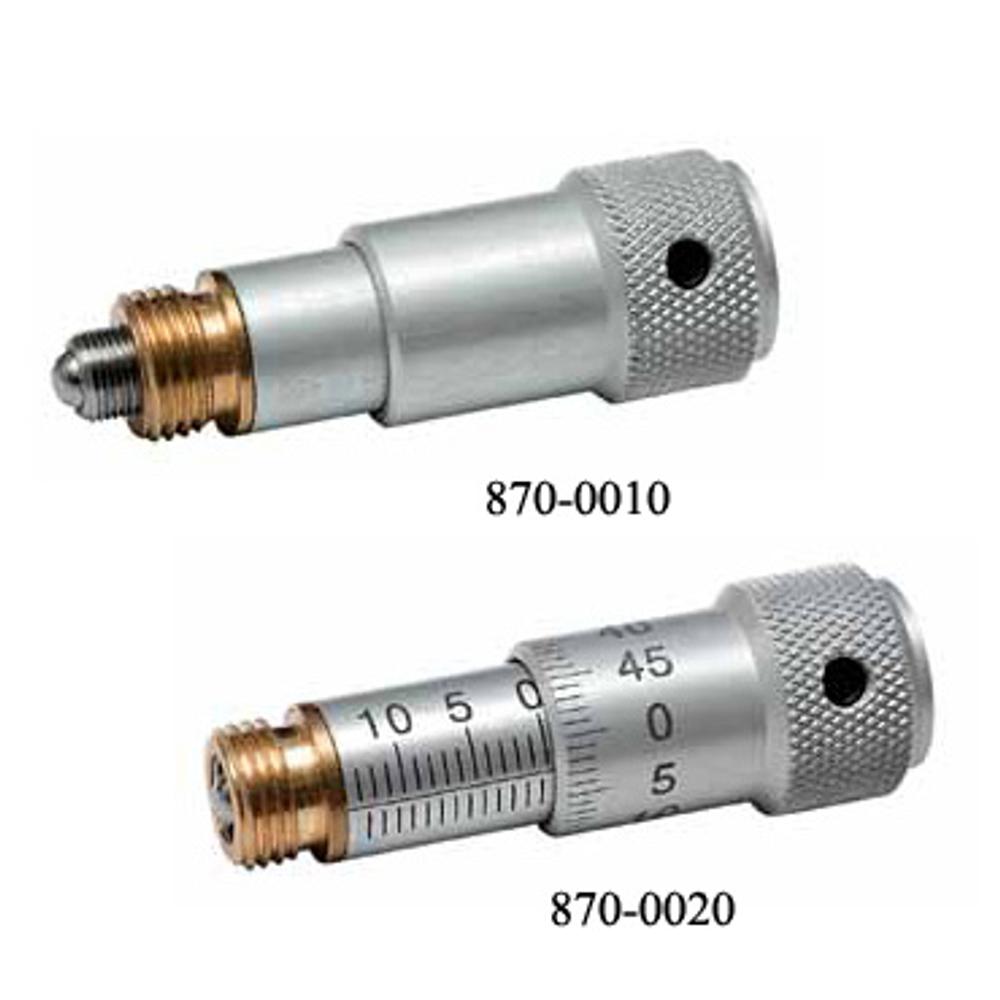

Precise 870-0010 and Micrometer 870-0020 Screws
Precise adjustment screw 870-0010 with 13 mm travel has 1 µm sensitivity and 0.5 mm thread step. Micrometer screw 870-0020 with reading marks has the same travel and thread step as 870-0010. The division value of… Read more →
Configure & order — pick a catalog variant or configure your own
Product
Product Type
Any
2
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Travel Range | Travel Sensitivity | Length | Screw Pitch | Mounting method | |
|---|---|---|---|---|---|---|---|
| 870-0010 | Precise Adjustment Screws | 13 mm | 1 µm | 49 mm | M6×0.5 | Mounting Thread |
3 in stock
Ships in: 2–5 calendar days
$39
|
| 870-0020 | Micrometer Adjustment Screws | 13 mm | — | 49 mm | M6×0.5 | Mounting Thread |
Out of stock
$45
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Travel Range | 13 mm |
| Length | 49 mm |
| Screw Pitch | M6×0.5 |
| Mounting method | Mounting Thread |
| Weight | 0.05 kg |
| Mounting Thread | M10×1 |
Description
Precise adjustment screw 870-0010 with 13 mm travel has 1 µm sensitivity and 0.5 mm thread step.
Micrometer screw 870-0020 with reading marks has the same travel and thread step as 870-0010. The division value of 870-0020 is 0.01 mm and limit of permissible error is ± 4 µm.
