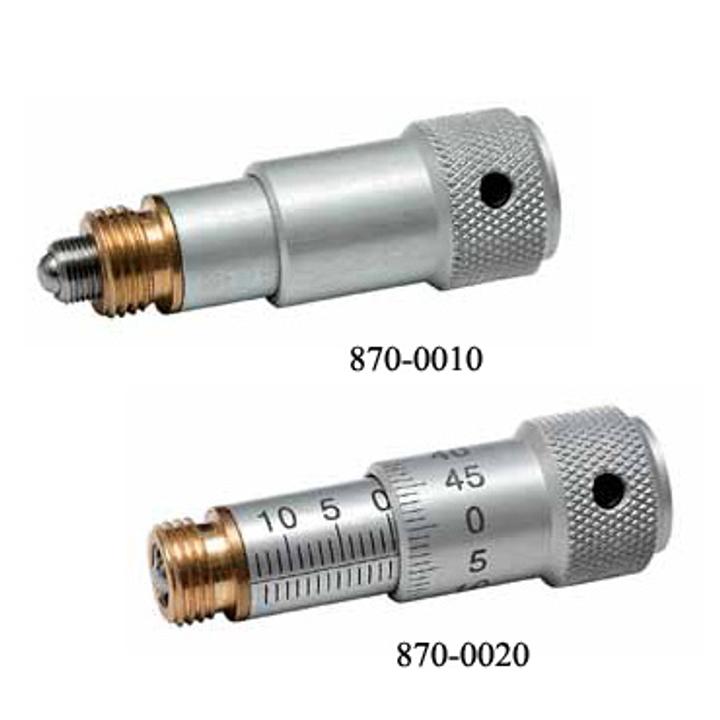

Precise 870-0010 and Micrometer 870-0020 Screws SKU: 870-0020
Precise adjustment screw 870-0010 with 13 mm travel has 1 µm sensitivity and 0.5 mm thread step. Micrometer screw 870-0020 with reading marks has the same travel and thread step as 870-0010. The division value of 870-0020 is 0.01 mm and limit of permissible error is ± 4 µm.
Variant specifications
| Product | Value |
|---|---|
| Product Type | Micrometer Adjustment Screws |
| Travel Range | 13 mm |
| Length | 49 mm |
| Screw Pitch | M6×0.5 |
| Mounting method | Mounting Thread |
| Weight | 0.05 kg |
| Scale Division | 10 µm |
| Mounting Thread | M10×1 |
Variant files
Technical drawings, models and data files for SKU 870-0020.
Product brochures
Shared documentation for the complete product family.
