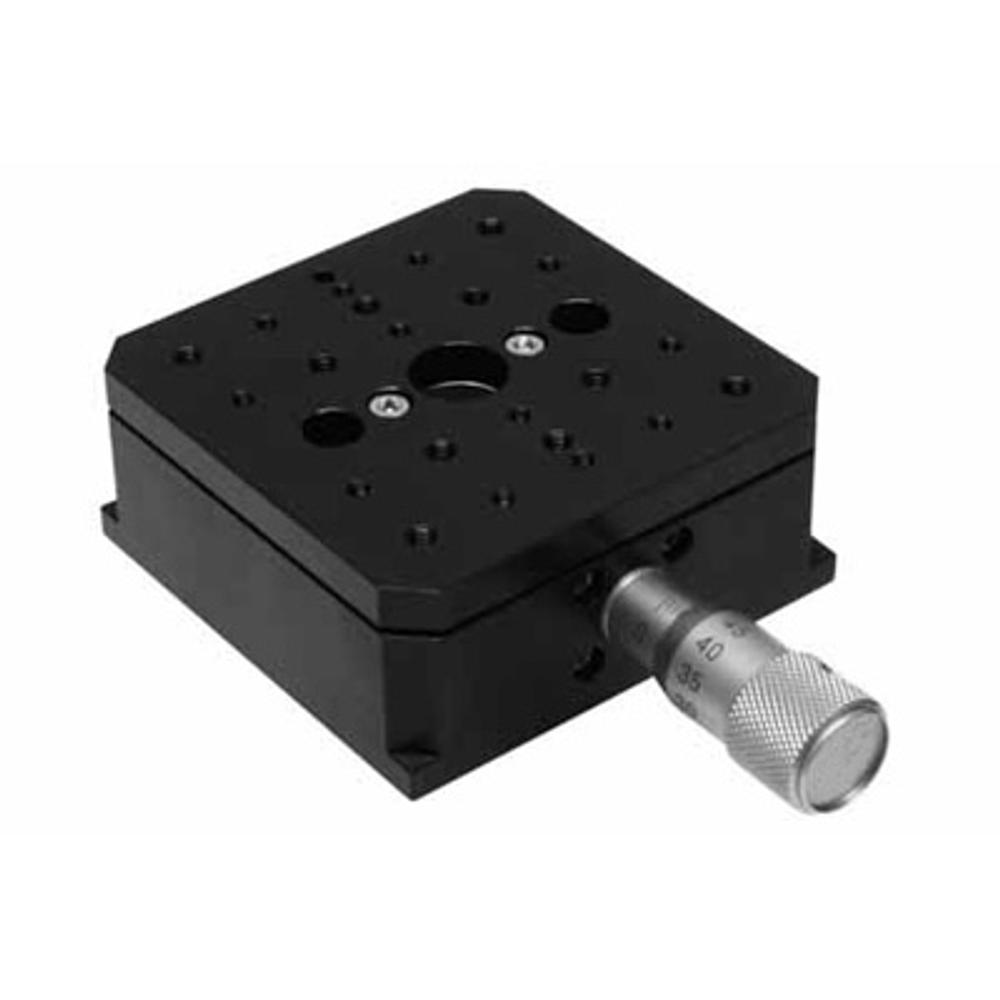

Linear Flexure Translation Stage 860-0105
• Extremely low friction • Stackable for X-Y-Z configurations The 860-0105 linear flexure translation stages provide ultra smooth translation for optical assemblies and other components. These stages guarantee… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 860-0105 |
Out of stock
$417
|
|
| 860-0105XY |
Out of stock
$832
|
|
| 860-0105XYZ |
Out of stock
$1,340
|
Specifications
| Travel range | 5 mm |
| Sensitivity with: / Micrometer screw / Differential screw | 1 µm / 0.1 µm |
| Tracking accuracy | 2 µm |
| Reading accuracy | 10 µm |
| Load capacity | 1 kg |
| Assemblies: / X-Y / Z | directly / angle bracket |
Classification
| Type | translation|rotation |
Description
- Extremely low friction
- Stackable for X-Y-Z configurations
The 860-0105 linear flexure translation stages provide ultra smooth translation for optical assemblies and other components. These stages guarantee linearity of motion over the whole travel range. High stability and smoothness of translation of the stages is ideal for applications in interferometry, biomedicine, microscopy and other nanoprecision adjustment. Extremely low friction.
Stackable for X-Y-Z configurations.
Available options include linear flexure stage equipped with stepper motor actuator, DC motor actuator and piezo actuator.
