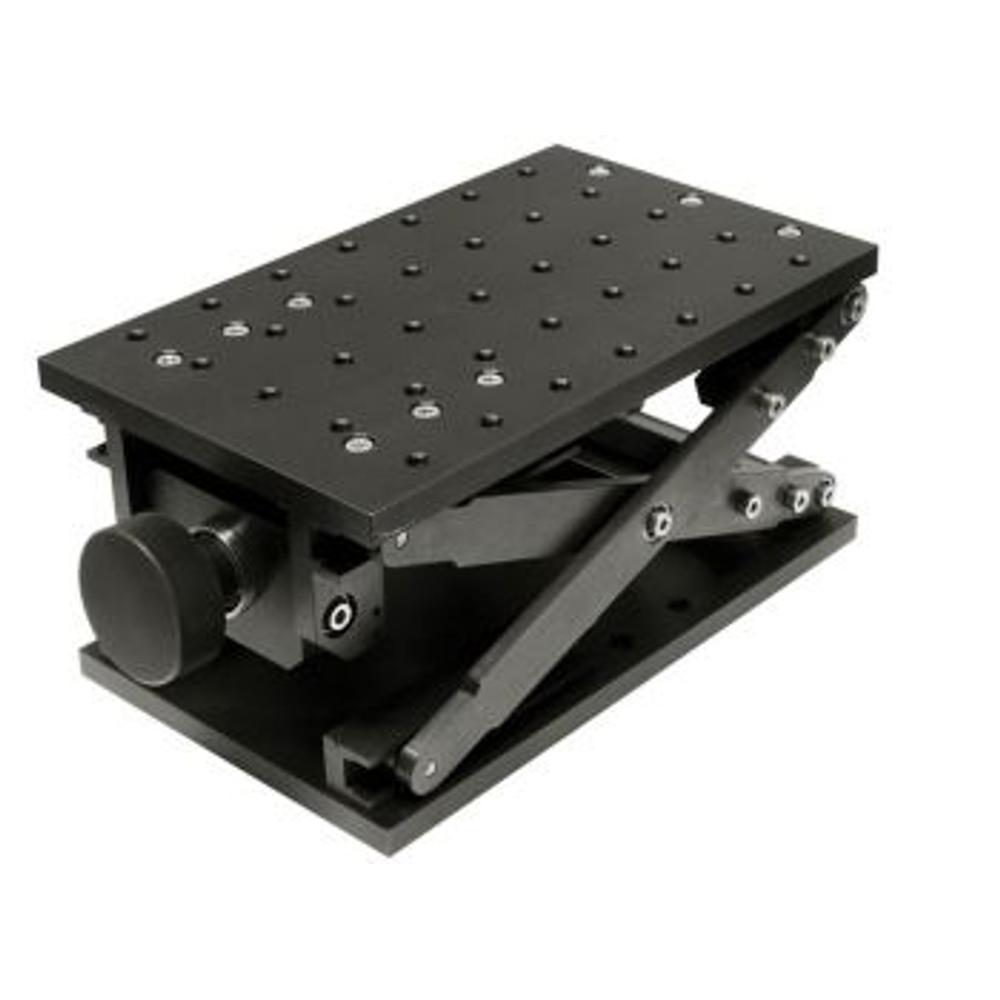

Vertical Translation Stage 860-0075
• Pantograph design • 16 ball bearings • Precision lead screw • 100 mm vertical travel • Height: min 84 mm, max 184 mm • Top and bottom plates parallel to 1 mm • Load capacity 7 kg Vertical Translation Stage 860-0075… Read more →
Order
| SKU | Product Type | Mount Material and Coat | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|
| 860-0075 | Manual Translation Stage | Black Anodised Aluminum | 100 mm | Z | 7 kg |
Out of stock
$597
|
Specifications
| Product Type | Manual Translation Stage |
| Mount Material and Coat | Black Anodised Aluminum |
| Travel Range | 100 mm |
| Possible Axis Configurations | Z |
| Load Capacity Horizontal | 7 kg |
| Weight | 2.72 kg |
| Width | 125 mm |
| Length | 200 mm |
| Height | 184 mm |
Description
- Pantograph design
- 16 ball bearings
- Precision lead screw
- 100 mm vertical travel
- Height: min 84 mm, max 184 mm
- Top and bottom plates parallel to 1 mm
- Load capacity 7 kg
Vertical Translation Stage 860-0075 boasts our unique design. Being very compact, it provides smooth and stable adjustment of height. It has large travel range, and it supports large loads. While moving the platform stays parallel to the base.
The lead screw acts at a varying angle, so the resolution of the stage varies with position. The platform has an array of M6 holes spaced by 25 mm. The base has six M6 and two Ø6.5 holes.
Material: Black anodized aluminium.
