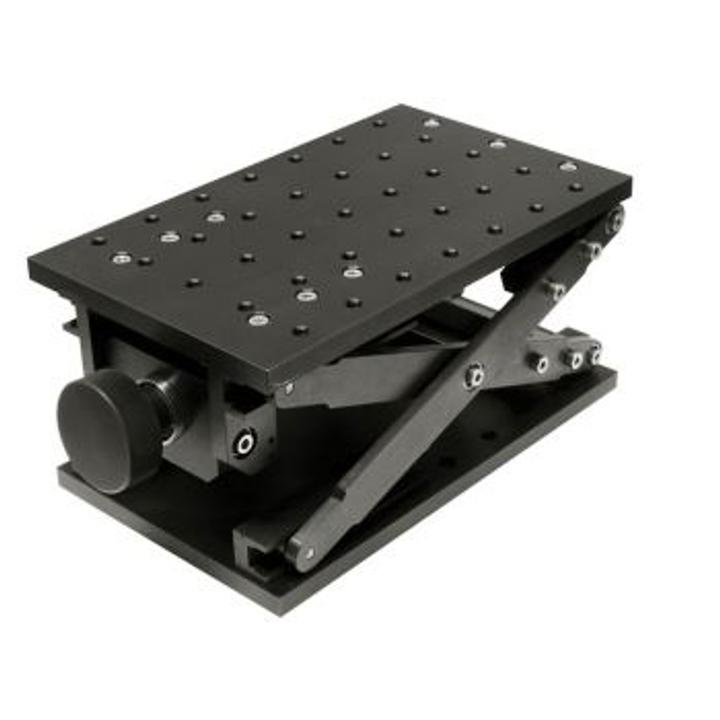

Vertical Translation Stage 860-0075 SKU: 860-0075
• Pantograph design • 16 ball bearings • Precision lead screw • 100 mm vertical travel • Height: min 84 mm, max 184 mm • Top and bottom plates parallel to 1 mm • Load capacity 7 kg Vertical Translation Stage 860-0075 boasts our unique design. Being very compact, it provides…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Translation Stage |
| Mount Material and Coat | Black Anodised Aluminum |
| Travel Range | 100 mm |
| Possible Axis Configurations | Z |
| Load Capacity Horizontal | 7 kg |
| Weight | 2.72 kg |
| Width | 125 mm |
| Length | 200 mm |
| Height | 184 mm |
