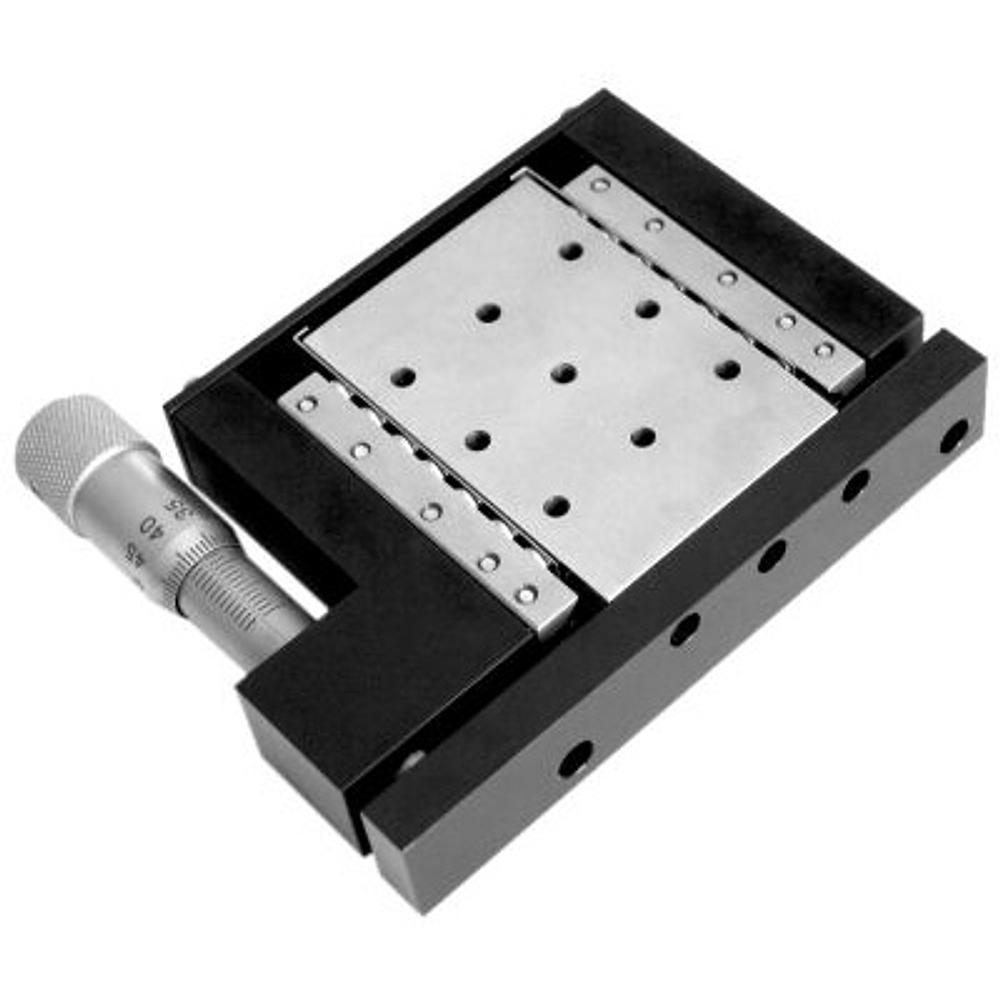

Translation Stage 860-0051
• Micrometer drive • Wide travel range • X-Y-Z configuration available
Order
| SKU | Product Type | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|
| 860-0051 | Manual Translation Stage | 15 mm | X | 10 kg |
Out of stock
$425
|
Specifications
| Product Type | Manual Translation Stage |
| Travel Range | 15 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 10 µm |
| Possible Axis Configurations | X |
| Load Capacity Horizontal | 10 kg |
| Load Capacity Vertical | 5 kg |
| Weight | 0.41 kg |
| Mounting Thread | M4, M3 |
| Width | 80 mm |
| Length | 100 mm |
| Height | 17.5 mm |
Description
- Micrometer drive
- Wide travel range
- X-Y-Z configuration available
