Stable Steel Translation Stage 860-0052
• Solid box design • 25 mm travel range • Variety of mounting holes and options • Easily stacked in X-Y configuration • For Z axis add 810-0146 angle bracket • Large mounting surface • Made of steel Stable Steel… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Vacuum Compatibility | Mount Material and Coating | Travel Range | Possible Axis Configurations | Load Capacity Horizontal | |
|---|---|---|---|---|---|---|---|
| 860-0052 | Manual Translation Stage | False | Blackened Steel | 25 mm | X | 20 kg |
Out of stock
$472
|
| 860-0052S | Manual Translation Stage | False | Stainless Steel | 25 mm | X | 20 kg |
Out of stock
$579
|
| 860-0052SXY | Manual Translation Stage | False | Stainless Steel | 25 mm | XY | 20 kg |
Out of stock
$1,157
|
| 860-0052SXYZ | Manual Translation Stage | False | Stainless Steel | 25 mm | XYZ | 20 kg |
Out of stock
$1,779
|
| 860-0052XY | Manual Translation Stage | False | Blackened Steel | 25 mm | XY | 20 kg |
Out of stock
$944
|
| 860-0052XYZ | Manual Translation Stage | False | Blackened Steel | 25 mm | XYZ | 20 kg |
Out of stock
$1,462
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Manual Translation Stage |
| Vacuum Compatibility | False |
| Travel Range | 25 mm |
| Travel Sensitivity | 1 µm |
| Tracking Accuracy - Linear | 2 µm |
| Reading Accuracy - Linear | 10 µm |
| Load Capacity Horizontal | 20 kg |
| Load Capacity Vertical | 5 kg |
| Mounting Thread | M6, M4 |
Description
- Solid box design
- 25 mm travel range
- Variety of mounting holes and options
- Easily stacked in X-Y configuration
- For Z axis add 810-0146 angle bracket
- Large mounting surface
- Made of steel

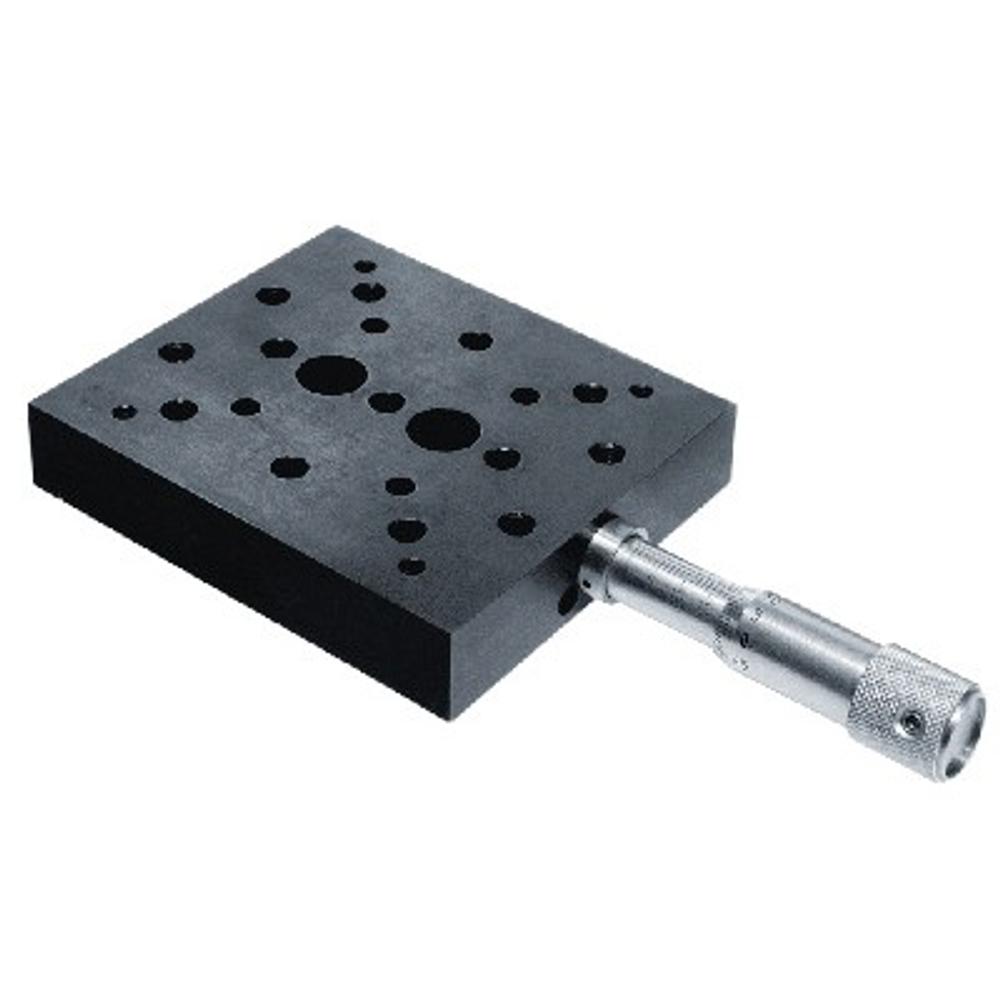

Stable Steel Translation Stages 860-0052 have large mounting surface, great travel range for this relatively small size, low profile, and increased stability and precision. Box design reinforces the stage, reducing flex. Steel, as a material, adds to stability.
You can mount a second driving screw on the other end (to lock the platform in fixed positioning applications).The platform is preloaded by springs. The stages can be stacked immediately to other units, or to their own type (e.g. in X-Y configuration). The stages can be used upside-down.
For immediate attachment the base has 2 clearance holes for M6 screws. Similarly, the platform has 4 clearance holes for M4 screws. Slip the screws from top or under through the access holes in a platform/base. Micrometer 870-0040-25 comes as standard.
The stage has black anodized finish.
